SKU: FBL.205G

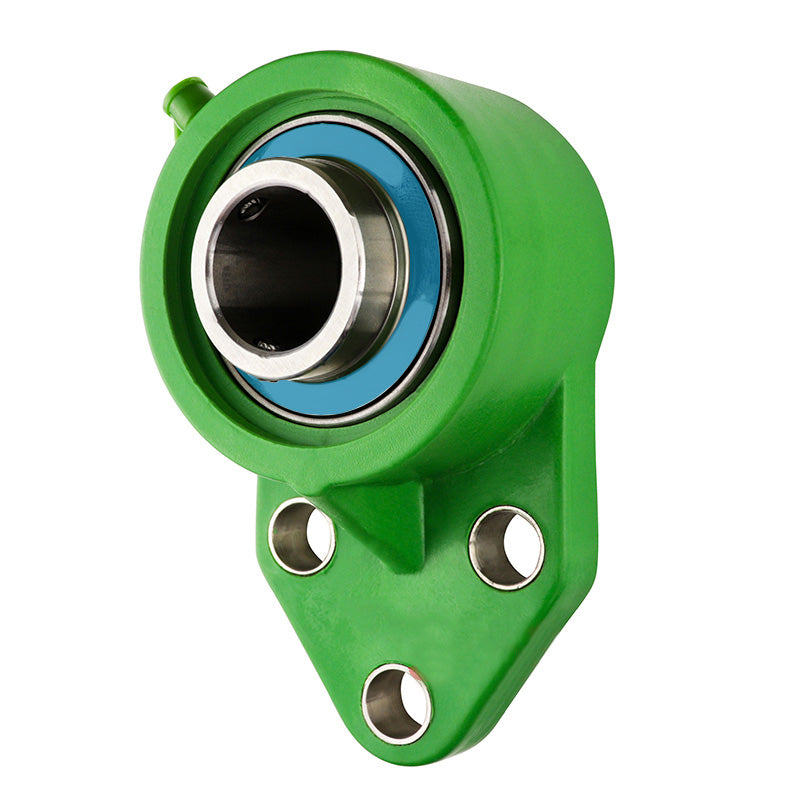

Challenge / FK FBL205G Metric Thermo Plastic Offset Three Bolt Housing with 25mm Bore Stainless Insert
Challenge / FK FBL205G Metric Thermo Plastic Offset Three Bolt Housing with 25mm Bore Stainless Insert
Regular price
Rs. 2,742.16
Regular price
Sale price
Rs. 2,742.16
Taxes included.
In stock
Price Break
10+
Rs. 2,440.52
19+
Rs. 2,303.41
29+
Rs. 2,275.99
39+
Rs. 2,248.57
49+
Rs. 2,221.15
74+
Rs. 2,193.73
99+
Rs. 2,056.62
199+
Rs. 2,029.20
249+
Rs. 2,001.78
499+
Rs. 1,974.36
999+
Rs. 1,919.51
Description
Description
Three Bolt Thermoplastic Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. Insert is filled with food grade grease.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 25mm
- Style:
- FBL
- Colour:
- Green
- Bolt Hole Centres:
- 41.3mm
Technical
Technical
| Inside Dia | 25mm |
|---|---|
| a | 85.7mm |
| b | 63.5mm |
| c | 41.3mm |
| D | 46mm |
| e | 41.2mm |
| f | 28.6mm |
| g | 11.4mm |
| h | 120.6mm |
| k | 10.7mm |
| n | 14.3mm |
| Bolt | M10 |
| Max Torque | 25 Nm |
| Weight | 0.29 kg |
