SKU: FBL-04-MB

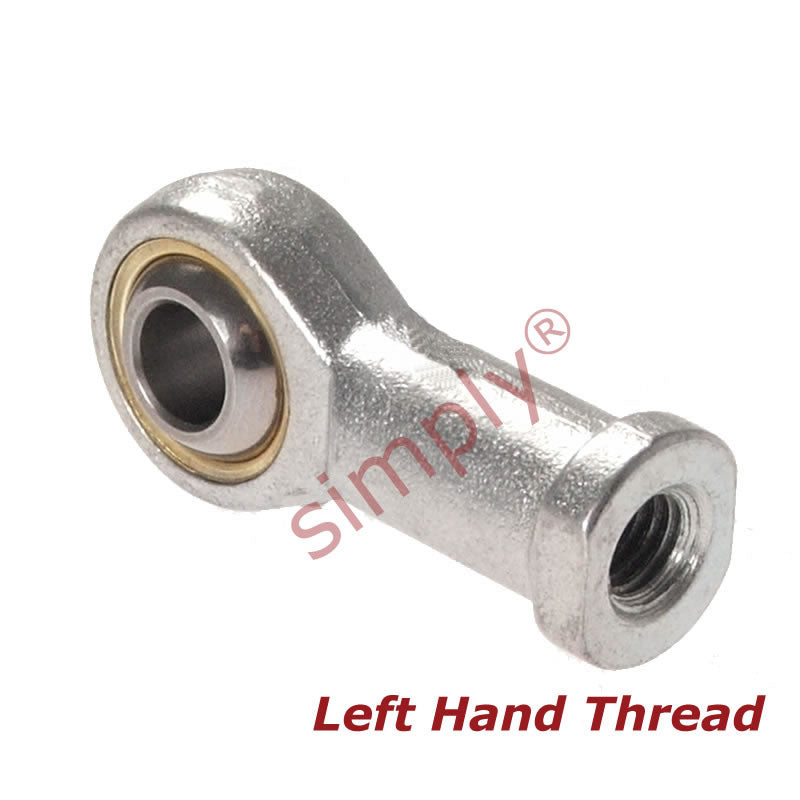

Branded FBL-04 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread - Allow 7-10 Days
Branded FBL-04 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread - Allow 7-10 Days
Regular price
Rs. 1,442.06
ex VAT
Regular price
Sale price
Rs. 1,442.06
ex VAT
In stock
Price Break
10+
Rs. 1,283.43
19+
Rs. 1,211.33
29+
Rs. 1,196.91
39+
Rs. 1,182.49
49+
Rs. 1,168.07
74+
Rs. 1,153.65
99+
Rs. 1,081.55
199+
Rs. 1,067.12
249+
Rs. 1,052.70
499+
Rs. 1,038.28
999+
Rs. 1,009.44
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/4 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Bore size | 1/4 inch |
|---|---|
| Thread | 1/4 UNF |
| W | 0.375 inch |
| H | 0.281 inch |
| D | 0.75 inch |
| L1 | 1.312 inch |
| L2 | 0.75 inch |
| O | 0.354 inch |
| AF | 0.375 inch |
| Static load | 6820 N |
