SKU: FB-M10S-MB

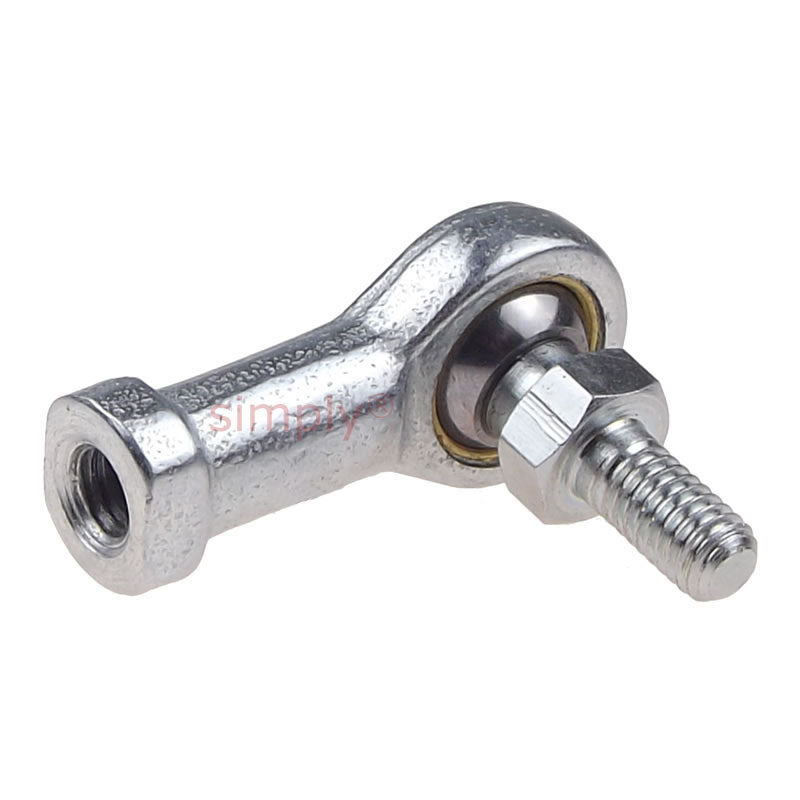

Branded FB-M10S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Branded FB-M10S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Regular price
Rs. 1,762.68
ex VAT
Regular price
Sale price
Rs. 1,762.68
ex VAT
Equivalent to: PHS10+STUD
In stock
Price Break
10+
Rs. 1,568.79
19+
Rs. 1,480.65
29+
Rs. 1,463.02
39+
Rs. 1,445.40
49+
Rs. 1,427.77
74+
Rs. 1,410.14
99+
Rs. 1,322.01
199+
Rs. 1,304.38
249+
Rs. 1,286.76
499+
Rs. 1,269.13
999+
Rs. 1,233.88
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS10+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M10 |
|---|---|
| Thread | M10x1.5 |
| A | 20mm |
| B | 20mm |
| C | 18mm |
| K | 17mm |
| Static load | 4240 N |
