SKU: FB-M08S-MB

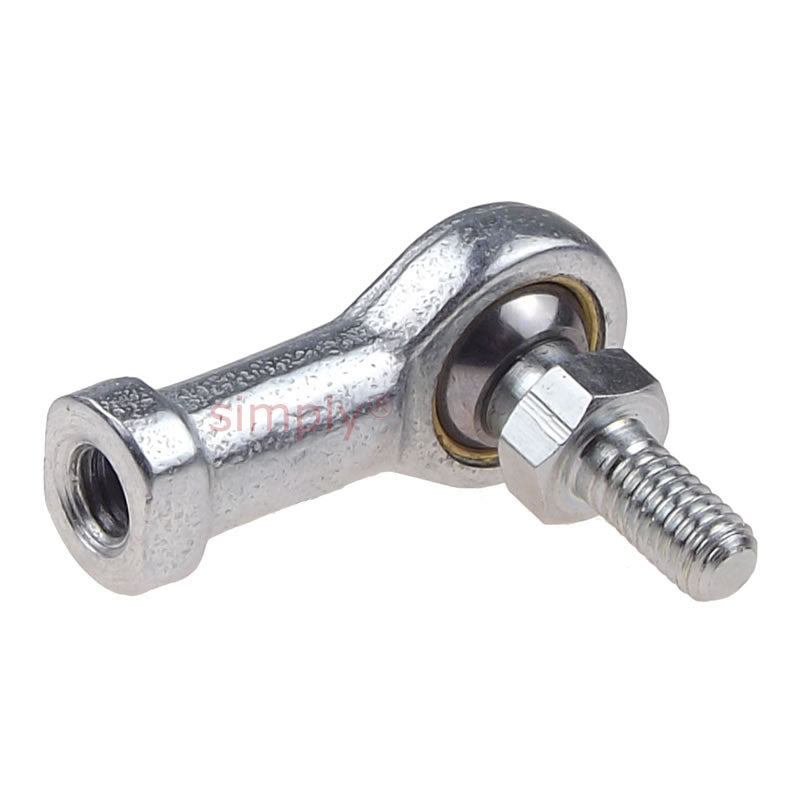

Branded FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread
Branded FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread
Regular price
Rs. 1,839.63
Regular price
Sale price
Rs. 1,839.63
Taxes included.
Equivalent to: PHS8+STUD
In stock
Price Break
10+
Rs. 1,637.27
19+
Rs. 1,545.29
29+
Rs. 1,526.89
39+
Rs. 1,508.50
49+
Rs. 1,490.10
74+
Rs. 1,471.70
99+
Rs. 1,379.72
199+
Rs. 1,361.33
249+
Rs. 1,342.93
499+
Rs. 1,324.53
999+
Rs. 1,287.74
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS8+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M8 |
|---|---|
| Thread | M8x1.25 |
| A | 16mm |
| B | 16mm |
| C | 14mm |
| K | 13mm |
| Static load | 3190 N |
