SKU: FB-M08-MB

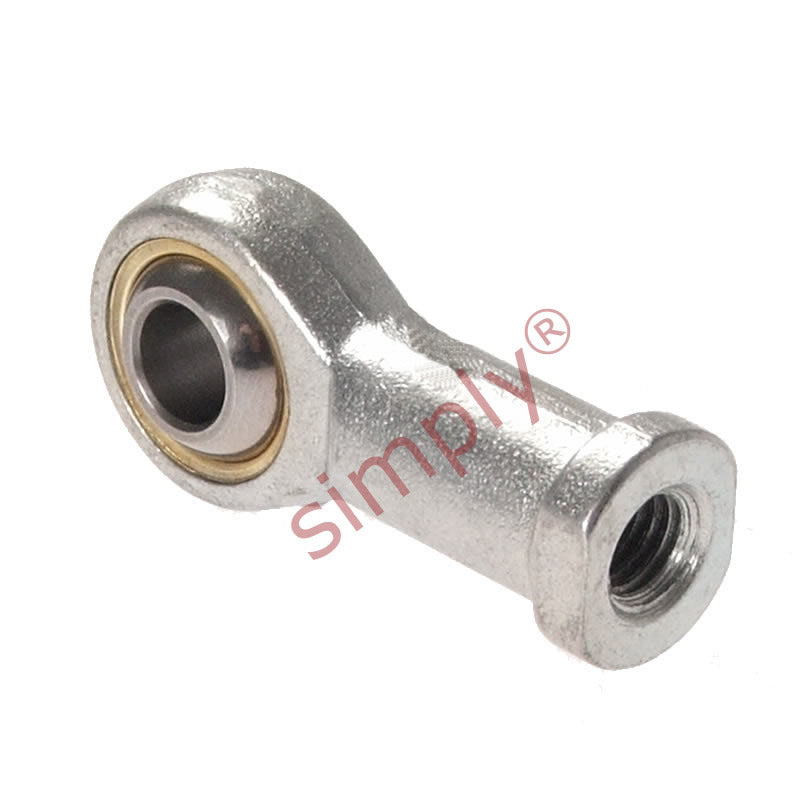

Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Regular price
Rs. 896.04
ex VAT
Regular price
Sale price
Rs. 896.04
ex VAT
Equivalent to: PHS8
In stock
Price Break
10+
Rs. 797.48
19+
Rs. 752.67
29+
Rs. 743.71
39+
Rs. 734.75
49+
Rs. 725.79
74+
Rs. 716.83
99+
Rs. 672.03
199+
Rs. 663.07
249+
Rs. 654.11
499+
Rs. 645.15
999+
Rs. 627.23
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Equivalent: PHS8
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M8x1.25 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 36mm |
| L2 | 17mm |
| O | 10.4mm |
| AF | 14mm |
| Static load | 10450 N |
