SKU: FB-M05S-MB

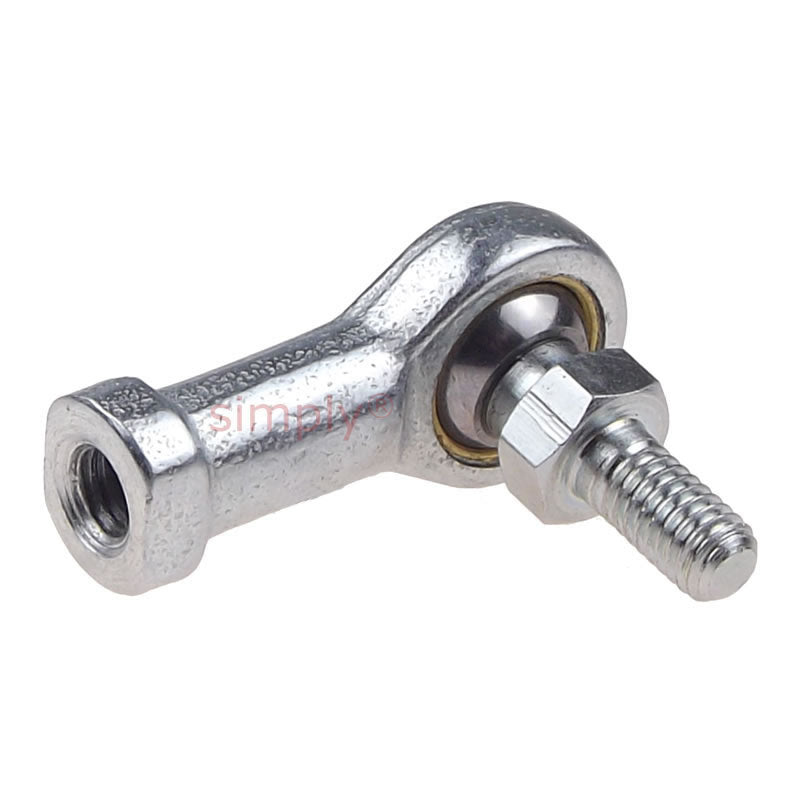

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
Regular price
Rs. 1,378.57
ex VAT
Regular price
Sale price
Rs. 1,378.57
ex VAT
Equivalent to: PHS5+STUD
In stock
Price Break
10+
Rs. 1,226.93
19+
Rs. 1,158.00
29+
Rs. 1,144.21
39+
Rs. 1,130.43
49+
Rs. 1,116.64
74+
Rs. 1,102.86
99+
Rs. 1,033.93
199+
Rs. 1,020.14
249+
Rs. 1,006.36
499+
Rs. 992.57
999+
Rs. 965.00
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS5+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M5 |
|---|---|
| Thread | M5x0.8 |
| A | 10mm |
| B | 10mm |
| C | 8mm |
| K | 9mm |
| Static load | 1200 N |
