SKU: FB-08-MB

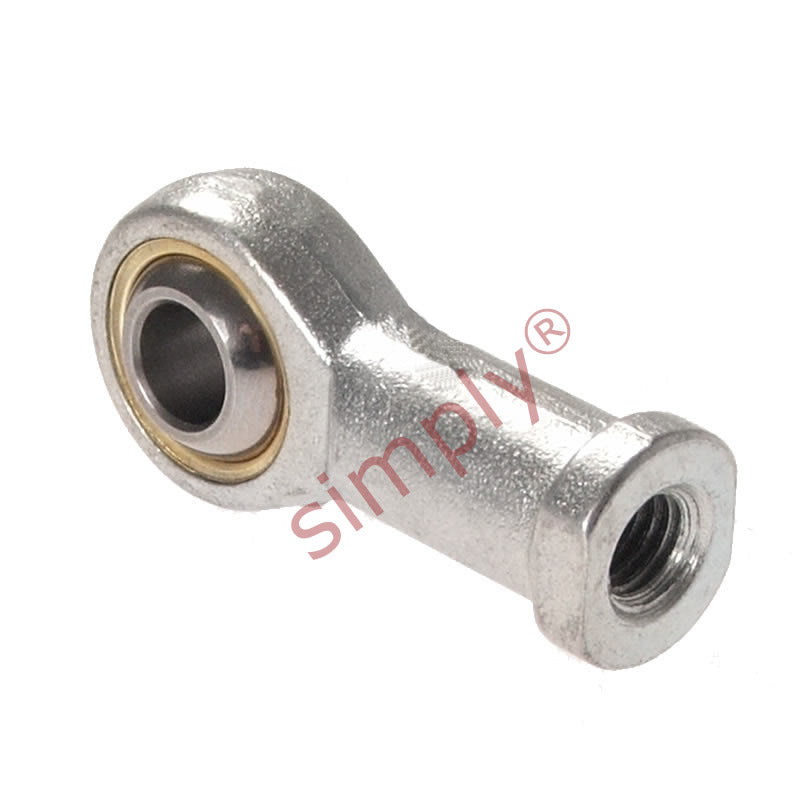

Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
Regular price
Rs. 1,134.25
Regular price
Sale price
Rs. 1,134.25
Taxes included.
In stock
Price Break
10+
Rs. 1,009.48
19+
Rs. 952.77
29+
Rs. 941.43
39+
Rs. 930.09
49+
Rs. 918.74
74+
Rs. 907.40
99+
Rs. 850.69
199+
Rs. 839.35
249+
Rs. 828.00
499+
Rs. 816.66
999+
Rs. 793.98
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/2 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 1/2 inch |
|---|---|
| Thread | 1/2 UNF |
| W | 0.652 inch |
| H | 0.5 inch |
| D | 1.312 inch |
| L1 | 2.125 inch |
| L2 | 1.187 inch |
| O | 0.7 inch |
| AF | 0.75 inch |
| Static load | 19545 N |
