SKU: F9-17-EU

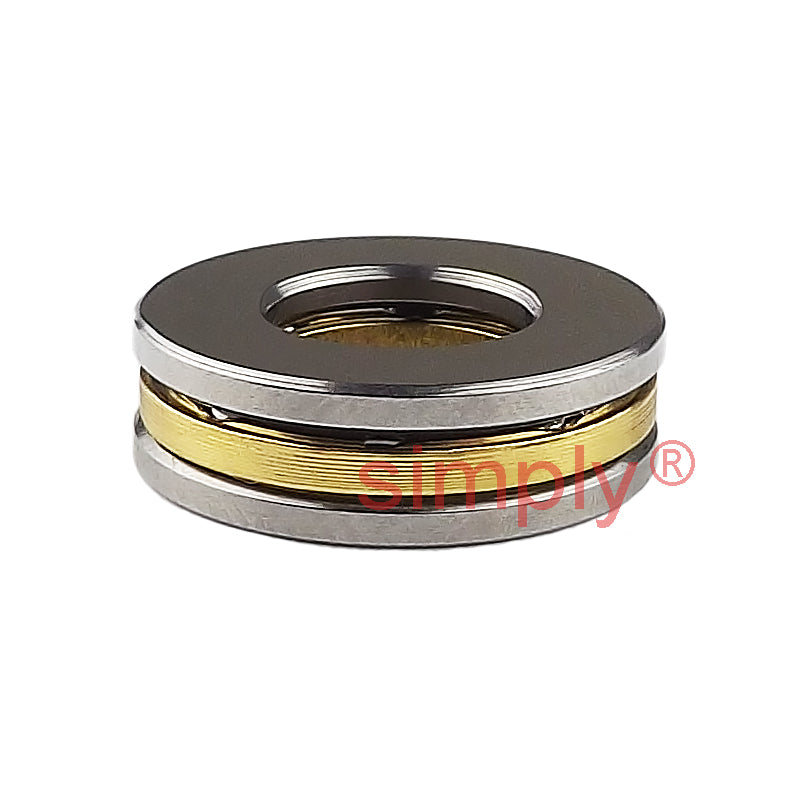

F9-17 Budget Single Thrust Ball Bearing 9x17x5mm
F9-17 Budget Single Thrust Ball Bearing 9x17x5mm
Regular price
Rs. 496.18
ex VAT
Regular price
Sale price
Rs. 496.18
ex VAT
In stock
Price Break
10+
Rs. 441.60
19+
Rs. 416.79
29+
Rs. 411.83
39+
Rs. 406.87
49+
Rs. 401.91
74+
Rs. 396.94
99+
Rs. 372.14
199+
Rs. 367.17
249+
Rs. 362.21
499+
Rs. 357.25
999+
Rs. 347.33
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 5mm
Technical
Technical
| d | 9mm (+/-0.008mm) |
|---|---|
| D | 17mm (+0/-0.011mm) |
| H | 5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 0.56 kN |
| Static load Co | 0.49 kN |
| Weight | 0.0051 kg |
| Limiting Speed | 22000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
