SKU: F8-16G-EU

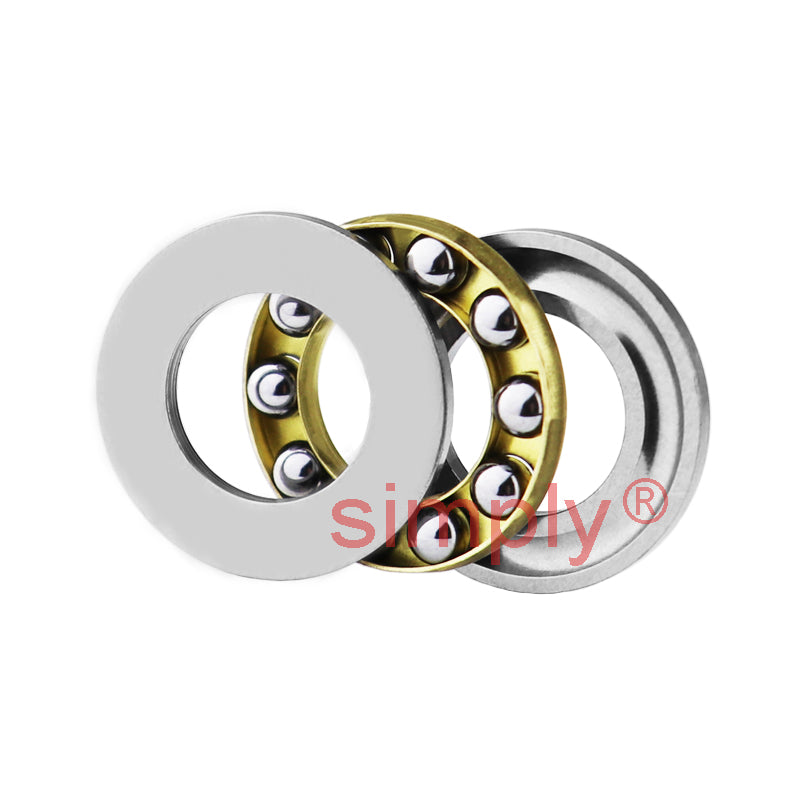

F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
Regular price
Rs. 401.98
Regular price
Sale price
Rs. 401.98
Taxes included.
In stock
Price Break
10+
Rs. 357.76
19+
Rs. 337.66
29+
Rs. 333.64
39+
Rs. 329.62
49+
Rs. 325.60
74+
Rs. 321.58
99+
Rs. 301.49
199+
Rs. 297.47
249+
Rs. 293.45
499+
Rs. 289.43
999+
Rs. 281.39
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
Technical
Technical
| d | 8mm (+0/-0.05mm) |
|---|---|
| D | 16mm (+0.005/-0.020mm) |
| H | 5mm (+0/-0.075mm) |
| d1 | 8.2mm (+0/-0.011mm) |
| D1 | 15.8mm (+0/-0.008mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 3.844 kN |
| Static load Co | 4.894 kN |
| Limiting speed | 16000 rpm |
| Weight | 0.004 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
