SKU: F8-16-EU

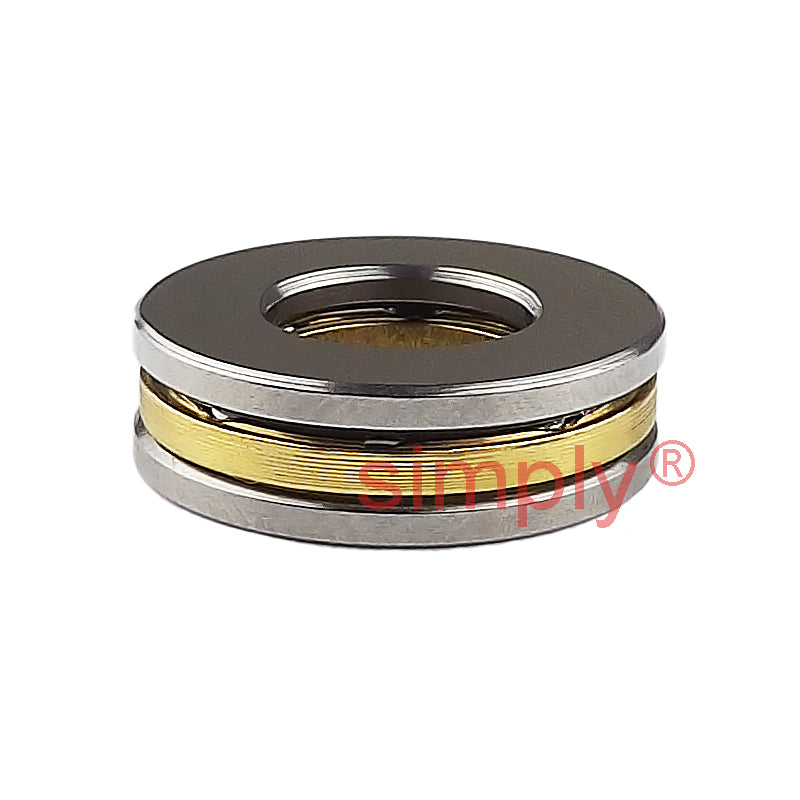

F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
Regular price
Rs. 431.42
Regular price
Sale price
Rs. 431.42
Taxes included.
In stock
Price Break
10+
Rs. 383.96
19+
Rs. 362.39
29+
Rs. 358.08
39+
Rs. 353.76
49+
Rs. 349.45
74+
Rs. 345.14
99+
Rs. 323.57
199+
Rs. 319.25
249+
Rs. 314.94
499+
Rs. 310.62
999+
Rs. 301.99
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
Technical
Technical
| d | 8mm (+/-0.008mm) |
|---|---|
| D | 16mm (+0/-0.011mm) |
| H | 5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 3.844 kN |
| Static load Co | 4.89 kN |
| Weight | 0.005 kg |
| Limiting Speed | 16000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
