SKU: F7-15G-EU
F7-15G Budget Single Thrust Ball Bearing with Grooved Washers 7x15x5mm
F7-15G Budget Single Thrust Ball Bearing with Grooved Washers 7x15x5mm
Regular price
Rs. 993.43
Regular price
Sale price
Rs. 993.43
Taxes included.
In stock
Price Break
10+
Rs. 884.15
19+
Rs. 834.48
29+
Rs. 824.55
39+
Rs. 814.61
49+
Rs. 804.68
74+
Rs. 794.74
99+
Rs. 745.07
199+
Rs. 735.14
249+
Rs. 725.20
499+
Rs. 715.27
999+
Rs. 695.40
Description
Description

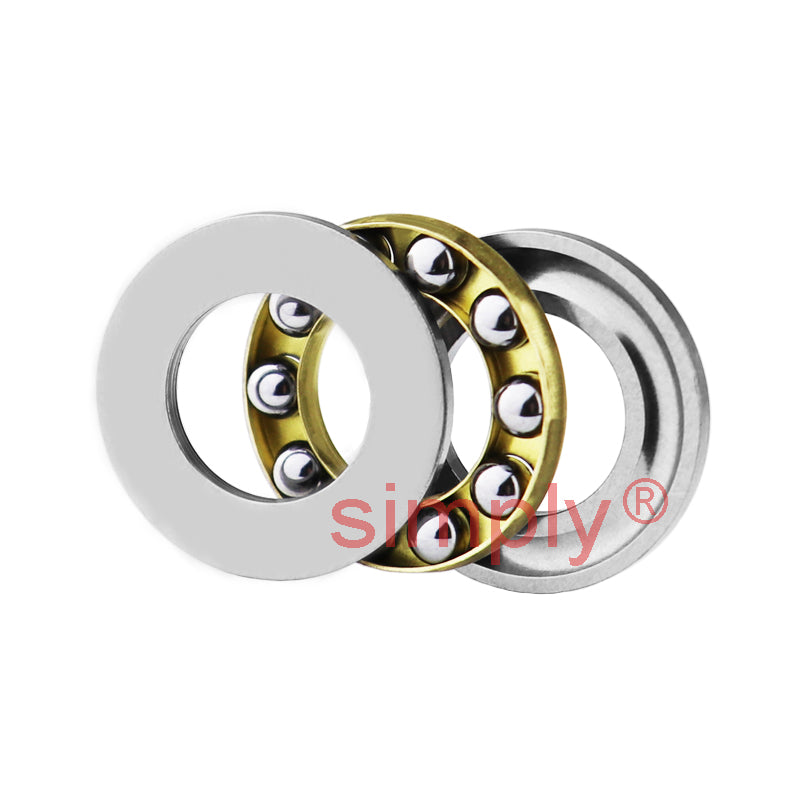

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 15mm
- Width:
- 5mm
Technical
Technical

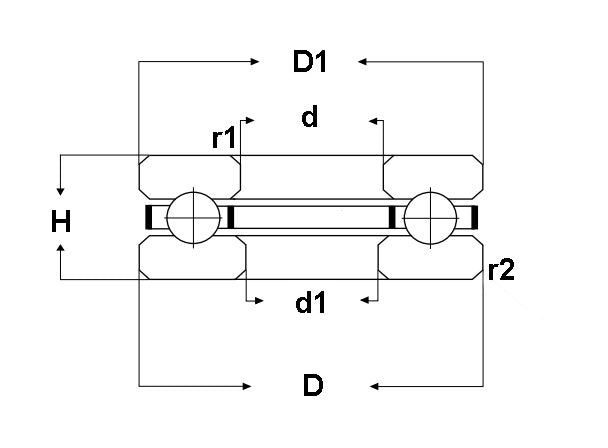

| d | 7mm (+/-0.008mm) |
|---|---|
| D | 15mm (+0/-0.011mm) |
| H | 5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 0.77 kN |
| Static load Co | 0.62 kN |
| Weight | 0.006 kg |
| Limiting Speed | 17000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
