SKU: F6902-LLU-MAX-EB-END

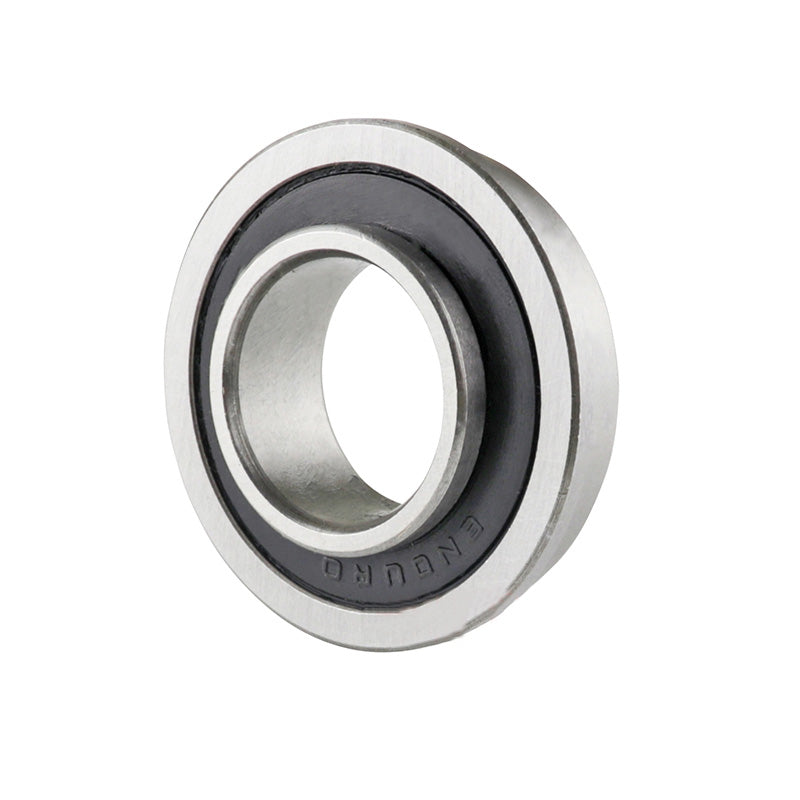

ENDURO F6902LLUMAX-EB Sealed Flanged Deep Groove Bearing with Extended Inner Race on the Flange Side 15x28x7/9.5mm
Equivalent to: F69022RSMAX-EB F61902LLUMAX-EB F619022RSMAX-EB
In stock
Price Break
Description
|
Enduro Flanged Rubber Sealed Deep Groove Ball Bearings: A commonly used bearing, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The have a larger diameter flange on one side of the bearing making it ideal to press into housings, once its fully pressed it will stop against the shoulder of the flange. Typically found in cycle wheel cranks and suspension systems. |
Note: These bearings may feature 'C3' on the box, this is not in reference to internal clearance and is a manufacturer code.
Equivalent: F69022RSMAX-EB F61902LLUMAX-EB F619022RSMAX-EB
- Brand / Quality:
- Enduro - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 9.5mm
- Seals / Shields:
- Rubber Sealed
Technical
| Inside Diameter | 15mm |
|---|---|
| Outside Diameter | 28mm |
| Width | 7mm |
| Width with extended Inner Race | 9.5mm |
| Static Load | 3.203 kN |
| Weight | 15.9 g |
