SKU: F6-13G-EU

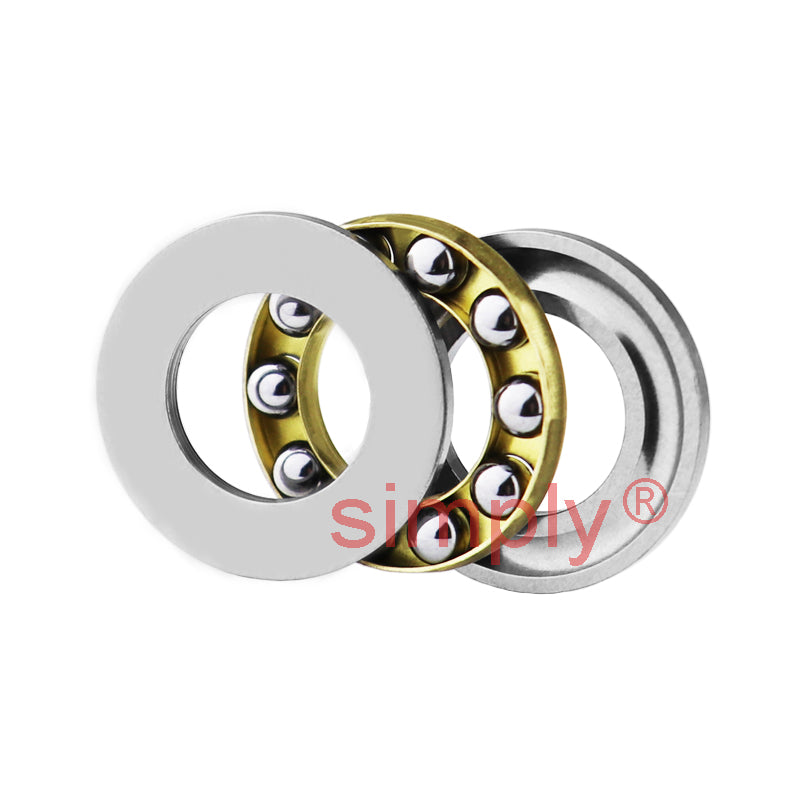

F6-13G Budget Single Thrust Ball Bearing with Grooved Washers 6x13x5mm
F6-13G Budget Single Thrust Ball Bearing with Grooved Washers 6x13x5mm
Regular price
Rs. 436.54
Regular price
Sale price
Rs. 436.54
Taxes included.
In stock
Price Break
10+
Rs. 388.52
19+
Rs. 366.69
29+
Rs. 362.33
39+
Rs. 357.96
49+
Rs. 353.60
74+
Rs. 349.23
99+
Rs. 327.41
199+
Rs. 323.04
249+
Rs. 318.67
499+
Rs. 314.31
999+
Rs. 305.58
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 13mm
- Width:
- 5mm
Technical
Technical
| d | 6mm (+0/-0.05mm) |
|---|---|
| D | 13mm (+0.005/-0.020mm) |
| H | 5mm (+0/-0.075mm) |
| d1 | 6.2mm (+0/-0.011mm) |
| D1 | 12.8mm (+0/-0.008mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 1.785 kN |
| Static load Co | 2.177 kN |
| Limiting speed | 18000 rpm |
| Weight | 0.002 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
