SKU: F6-12-EU

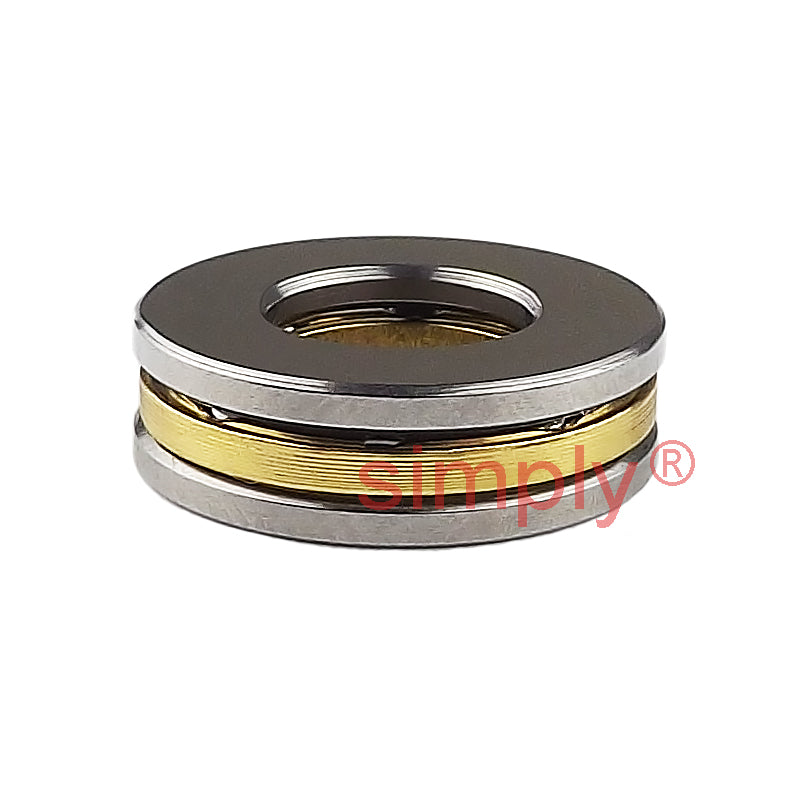

F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
Regular price
Rs. 669.54
Regular price
Sale price
Rs. 669.54
Taxes included.
In stock
Price Break
10+
Rs. 595.89
19+
Rs. 562.41
29+
Rs. 555.72
39+
Rs. 549.02
49+
Rs. 542.33
74+
Rs. 535.63
99+
Rs. 502.16
199+
Rs. 495.46
249+
Rs. 488.76
499+
Rs. 482.07
999+
Rs. 468.68
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 4.5mm
Technical
Technical
| d | 6mm (+/-0.008mm) |
|---|---|
| D | 12mm (+0/-0.011mm) |
| H | 4.5mm (+0/-0.075mm) |
| r1r2 min | 0.15mm |
| Dynamic load C | 0.38 kN |
| Static load Co | 0.3 kN |
| Weight | 0.0025 kg |
| Limiting Speed | 18000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
