SKU: F5-11-EU

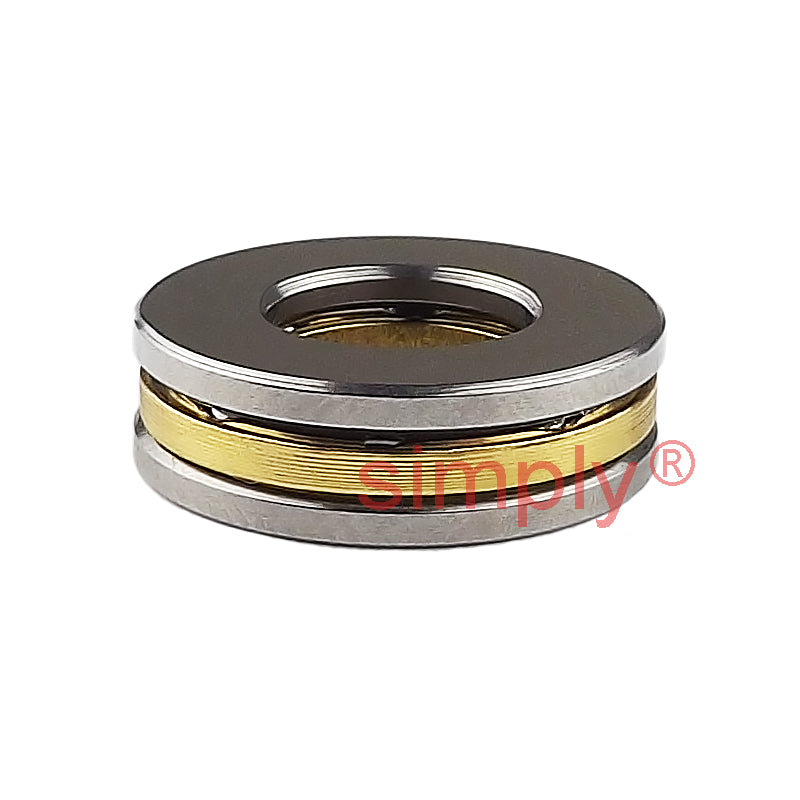

F5-11 Budget Single Thrust Ball Bearing 5x11x4.5mm
F5-11 Budget Single Thrust Ball Bearing 5x11x4.5mm
Regular price
Rs. 344.37
Regular price
Sale price
Rs. 344.37
Taxes included.
In stock
Price Break
10+
Rs. 306.49
19+
Rs. 289.27
29+
Rs. 285.83
39+
Rs. 282.38
49+
Rs. 278.94
74+
Rs. 275.50
99+
Rs. 258.28
199+
Rs. 254.83
249+
Rs. 251.39
499+
Rs. 247.95
999+
Rs. 241.06
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 11mm
- Width:
- 4.5mm
Technical
Technical
| d | 5mm (+/-0.008mm) |
|---|---|
| D | 11mm (+0/-0.011mm) |
| H | 4.5mm (+0/-0.075mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 0.33 kN |
| Static load Co | 0.245 kN |
| Weight | 0.001 kg |
| Limiting Speed | 19000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
