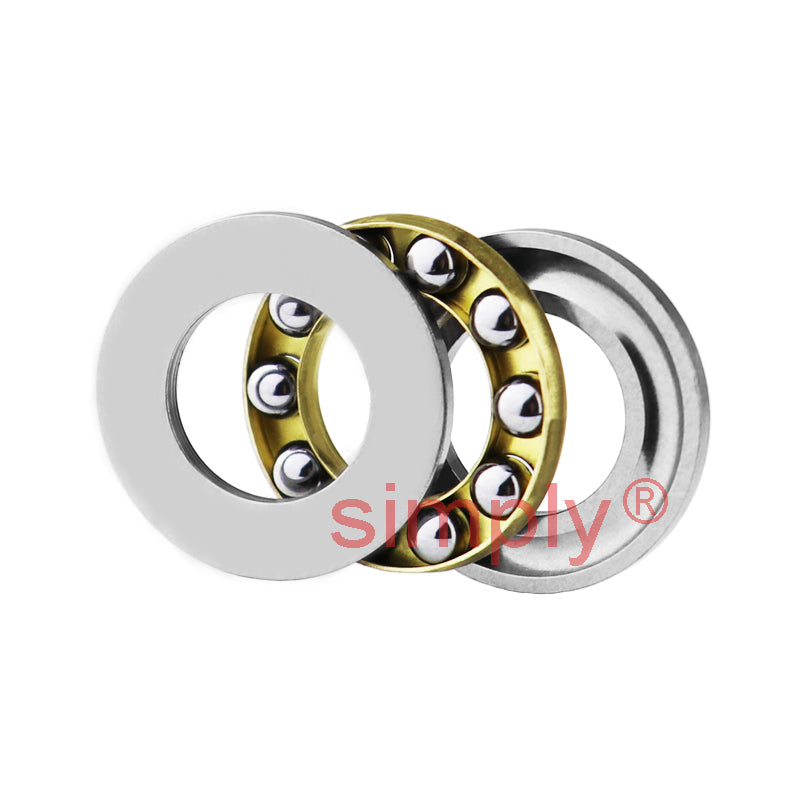

F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
Regular price
Rs. 343.59
ex VAT
Regular price
Sale price
Rs. 343.59
ex VAT
In stock
Price Break
10+
Rs. 305.80
19+
Rs. 288.62
29+
Rs. 285.18
39+
Rs. 281.74
49+
Rs. 278.31
74+
Rs. 274.87
99+
Rs. 257.69
199+
Rs. 254.26
249+
Rs. 250.82
499+
Rs. 247.38
999+
Rs. 240.51
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 9mm
- Width:
- 4mm
Technical
Technical
| d | 4mm (+0/-0.05mm) |
|---|---|
| D | 9mm (+0.005/-0.020mm) |
| H | 4mm (+0/-0.075mm) |
| d1 | 4.2mm (+0/-0.011mm) |
| D1 | 8.8mm (+0/-0.008mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 0.922 kN |
| Static load Co | 0.912 kN |
| Limiting speed | 22000 rpm |
| Weight | 0.002 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
