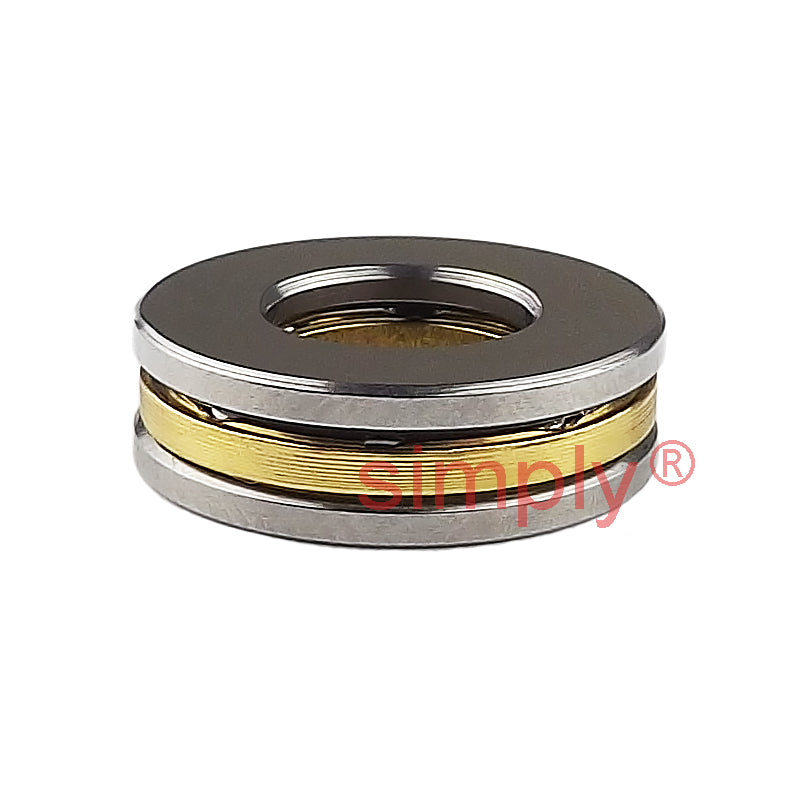

F2-6 Budget Single Thrust Ball Bearing 2x6x3mm
F2-6 Budget Single Thrust Ball Bearing 2x6x3mm
Regular price
Rs. 893.48
ex VAT
Regular price
Sale price
Rs. 893.48
ex VAT
In stock
Price Break
10+
Rs. 795.20
19+
Rs. 750.52
29+
Rs. 741.59
39+
Rs. 732.65
49+
Rs. 723.72
74+
Rs. 714.78
99+
Rs. 670.11
199+
Rs. 661.18
249+
Rs. 652.24
499+
Rs. 643.31
999+
Rs. 625.44
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 2mm
- Outside Diameter:
- 6mm
- Width:
- 3mm
Technical
Technical
| d | 2mm (+0/0.008mm) |
|---|---|
| D | 6mm (+0/-0.011mm) |
| H | 3mm (+0/-0.075mm) |
| r1r2 min | 0.1mm |
| Dynamic load C | 0.137 kN |
| Static load Co | 0.08 kN |
| Weight | 0.001 kg |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
