SKU: F10-18-EU

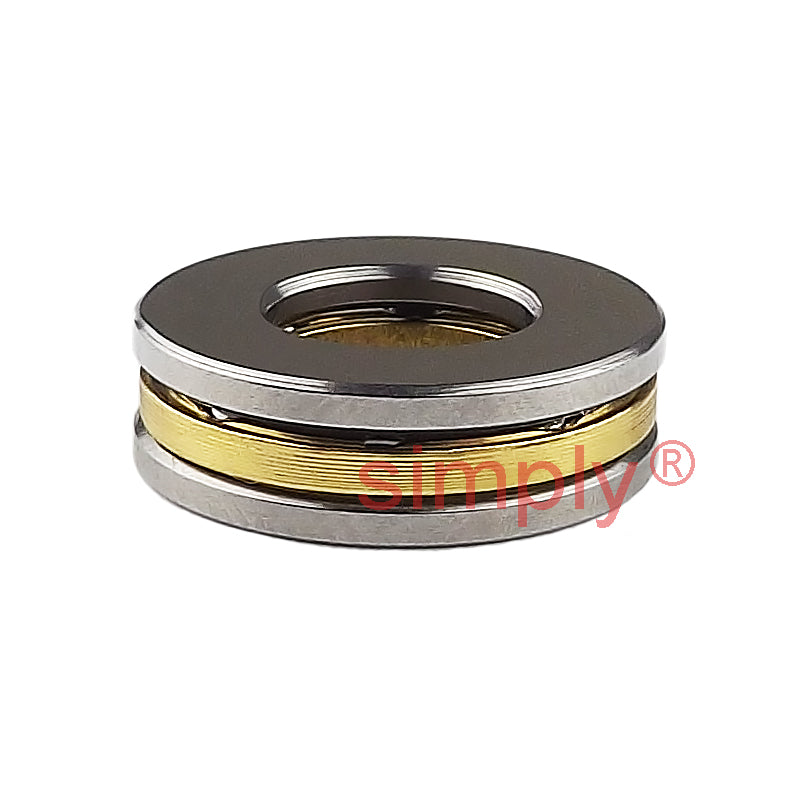

F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
Regular price
Rs. 496.71
Regular price
Sale price
Rs. 496.71
Taxes included.
In stock
Price Break
10+
Rs. 442.07
19+
Rs. 417.24
29+
Rs. 412.27
39+
Rs. 407.30
49+
Rs. 402.34
74+
Rs. 397.37
99+
Rs. 372.53
199+
Rs. 367.57
249+
Rs. 362.60
499+
Rs. 357.63
999+
Rs. 347.70
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18mm
- Width:
- 5.5mm
Technical
Technical
| d | 10mm (+/-0.008mm) |
|---|---|
| D | 18mm (+0/-0.011mm) |
| H | 5.5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 0.78 kN |
| Static load Co | 0.7 kN |
| Weight | 0.006 kg |
| Limiting Speed | 14000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
