SKU: EXT320-SNR

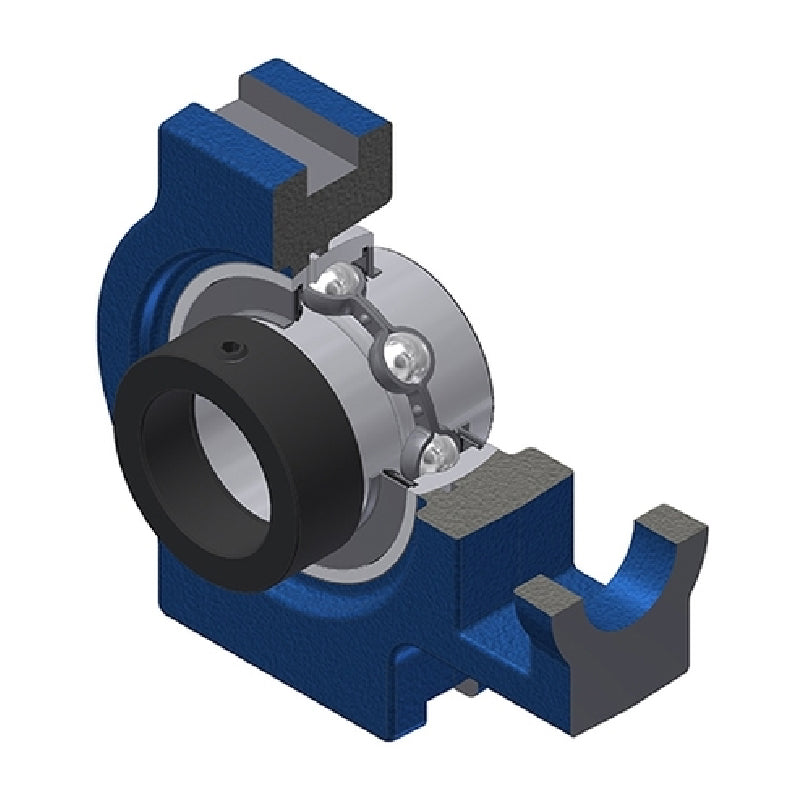

SNR EXT320 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 100mm Bore - Allow 2-3 Days
SNR EXT320 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 100mm Bore - Allow 2-3 Days
Regular price
Rs. 77,331.02
Regular price
Sale price
Rs. 77,331.02
Taxes included.
In stock
Price Break
2+
Rs. 73,464.47
5+
Rs. 69,597.92
10+
Rs. 65,731.37
15+
Rs. 61,864.82
20+
Rs. 60,318.20
30+
Rs. 58,771.58
50+
Rs. 51,038.47
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 120mm |
| A1 | 35mm |
| A2 | 75mm |
| B1 | 128.6mm |
| d1 | 146mm |
| H | 290mm |
| H1 | 260mm |
| H2 | 175mm |
| L | 345mm |
| L1 | 210mm |
| L2 | 34mm |
| L3 | 200mm |
| N | 59mm |
| N1 | 48mm |
| N2 | 115mm |
| S | 50mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 32.4 kg |
