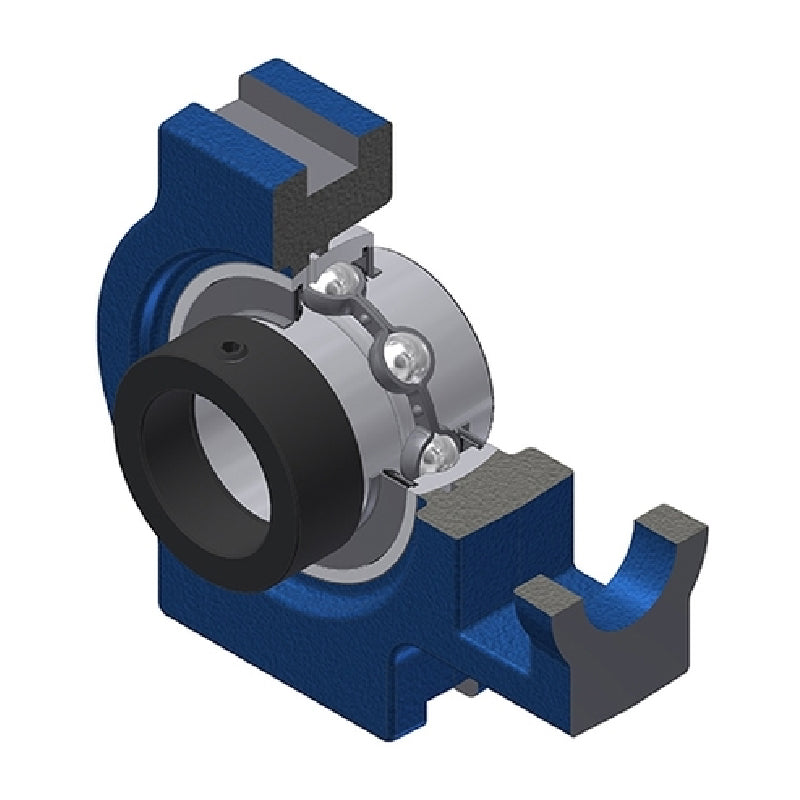

SNR EXT317 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 85mm Bore - Allow 2-3 Days
SNR EXT317 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 85mm Bore - Allow 2-3 Days
Regular price
Rs. 56,767.36
Regular price
Sale price
Rs. 56,767.36
Taxes included.
In stock
Price Break
5+
Rs. 56,199.69
10+
Rs. 53,928.99
20+
Rs. 52,793.64
50+
Rs. 51,090.62
100+
Rs. 49,955.28
500+
Rs. 47,116.91
1000+
Rs. 39,737.15
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 102mm |
| A1 | 32mm |
| A2 | 64mm |
| B1 | 109.5mm |
| d1 | 127mm |
| H | 240mm |
| H1 | 214mm |
| H2 | 152mm |
| L | 298mm |
| L1 | 183mm |
| L2 | 32mm |
| L3 | 170mm |
| N | 53mm |
| N1 | 42mm |
| N2 | 98mm |
| S | 42mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 132.6 kN |
| Static load C0 | 96.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 20.06 kg |
