SKU: EXT312-SNR

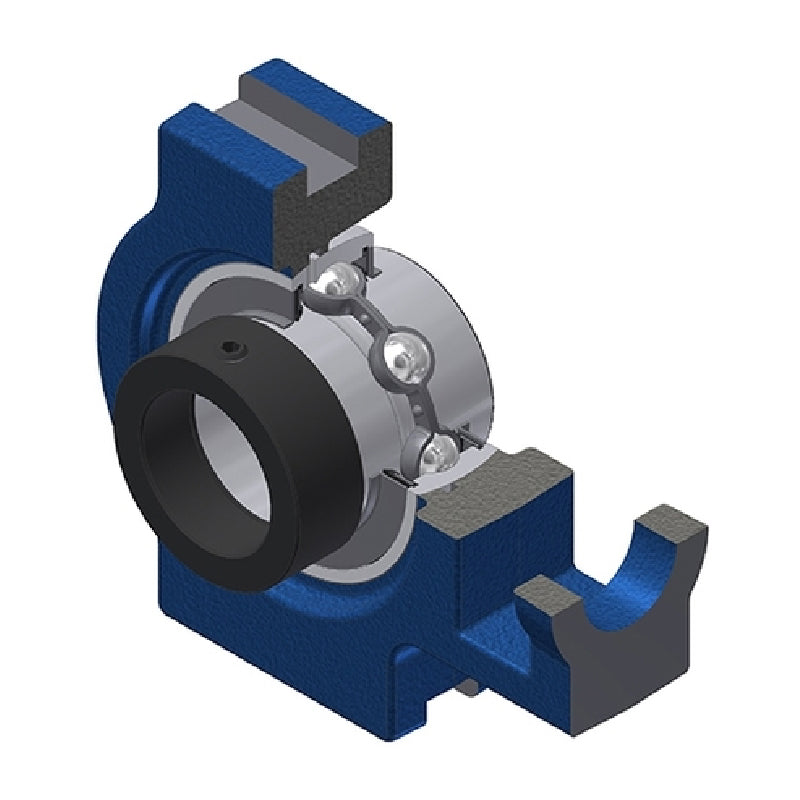

SNR EXT312 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
SNR EXT312 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price
Rs. 25,535.90
Regular price
Sale price
Rs. 25,535.90
Taxes included.
In stock
Price Break
5+
Rs. 25,280.54
10+
Rs. 24,259.11
20+
Rs. 23,748.39
50+
Rs. 22,982.31
100+
Rs. 22,471.59
500+
Rs. 21,194.80
1000+
Rs. 17,875.13
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 71mm |
| A1 | 22mm |
| A2 | 46mm |
| B1 | 79.4mm |
| d1 | 89mm |
| H | 178mm |
| H1 | 160mm |
| H2 | 113mm |
| L | 220mm |
| L1 | 135mm |
| L2 | 25mm |
| L3 | 123mm |
| N | 41mm |
| N1 | 31mm |
| N2 | 71mm |
| S | 30.95mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.89 kg |
