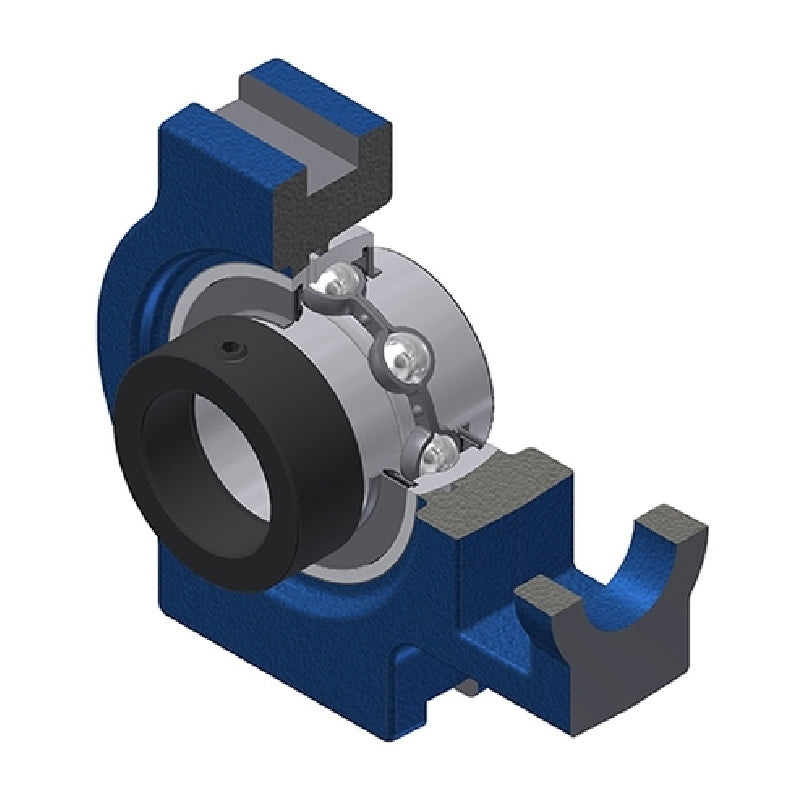

SNR EXT309 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR EXT309 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
Rs. 14,180.64
Regular price
Sale price
Rs. 14,180.64
Taxes included.
In stock
Price Break
5+
Rs. 14,038.83
10+
Rs. 13,471.61
20+
Rs. 13,188.00
50+
Rs. 12,762.58
100+
Rs. 12,478.96
500+
Rs. 11,769.93
1000+
Rs. 9,926.45
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 55mm |
| A1 | 18mm |
| A2 | 38mm |
| B1 | 58.7mm |
| d1 | 70mm |
| H | 138mm |
| H1 | 125mm |
| H2 | 90mm |
| L | 178mm |
| L1 | 110mm |
| L2 | 20mm |
| L3 | 97mm |
| N | 34mm |
| N1 | 24mm |
| N2 | 55mm |
| S | 19.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.15 kg |
