SKU: EXT308-SNR

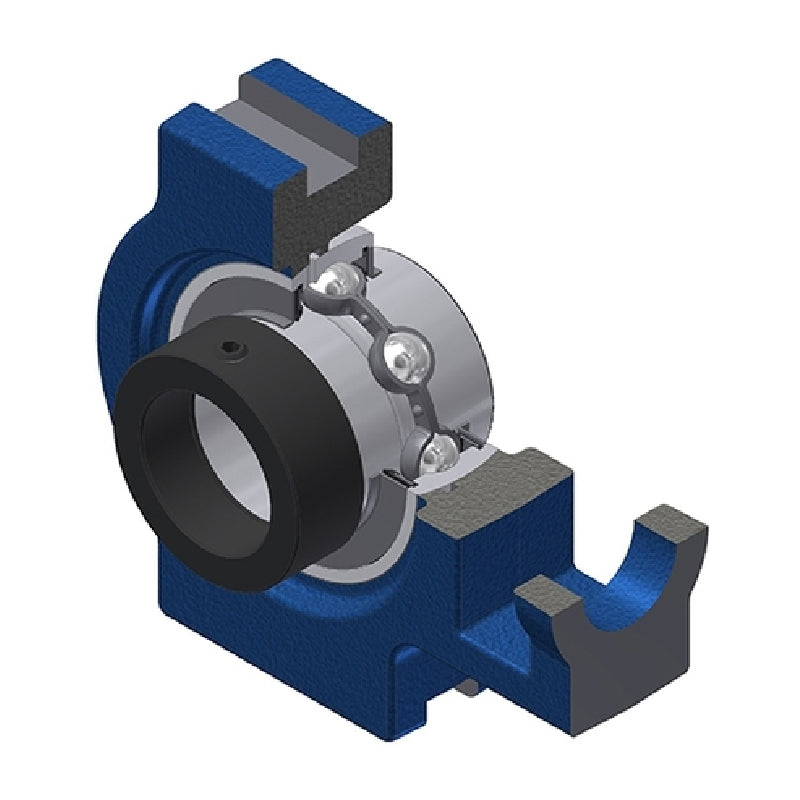

SNR EXT308 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR EXT308 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
Rs. 11,350.14
Regular price
Sale price
Rs. 11,350.14
Taxes included.
In stock
Price Break
5+
Rs. 11,236.64
10+
Rs. 10,782.63
20+
Rs. 10,555.63
50+
Rs. 10,215.13
100+
Rs. 9,988.12
500+
Rs. 9,420.62
1000+
Rs. 7,945.10
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 50mm |
| A1 | 18mm |
| A2 | 34mm |
| B1 | 57.1mm |
| d1 | 63.5mm |
| H | 124mm |
| H1 | 112mm |
| H2 | 83mm |
| L | 162mm |
| L1 | 100mm |
| L2 | 19mm |
| L3 | 89mm |
| N | 32mm |
| N1 | 22mm |
| N2 | 50mm |
| S | 19.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.08 kg |
