SKU: EXT305-SNR

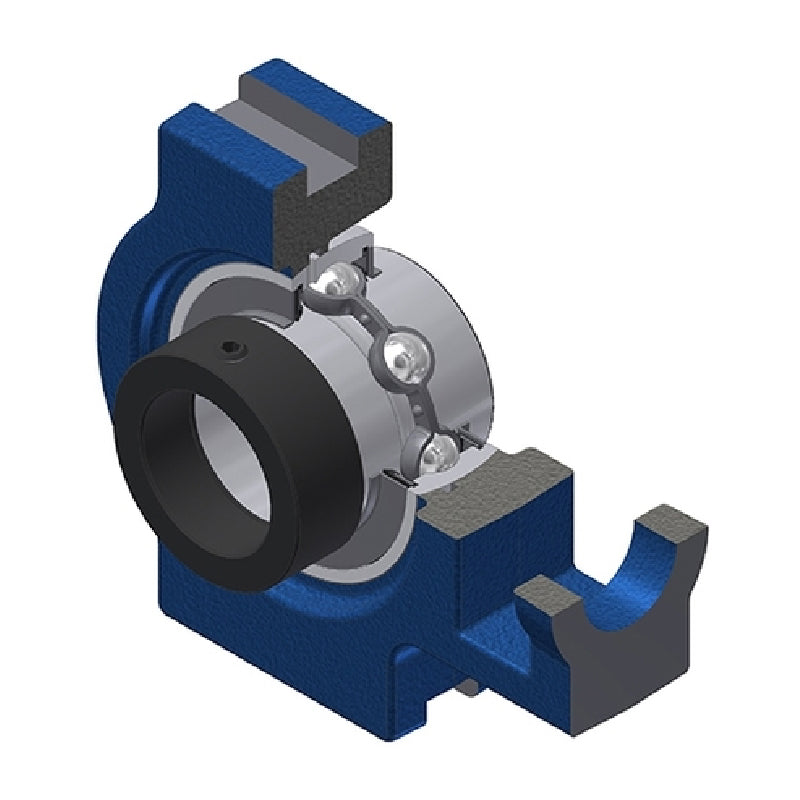

SNR EXT305 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR EXT305 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
Rs. 7,089.68
Regular price
Sale price
Rs. 7,089.68
Taxes included.
In stock
Price Break
5+
Rs. 7,018.78
10+
Rs. 6,735.20
20+
Rs. 6,593.40
50+
Rs. 6,380.71
100+
Rs. 6,238.92
500+
Rs. 5,884.43
1000+
Rs. 4,962.78
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 36mm |
| A1 | 12mm |
| A2 | 26mm |
| B1 | 46.8mm |
| d1 | 42.8mm |
| H | 89mm |
| H1 | 80mm |
| H2 | 62mm |
| L | 122mm |
| L1 | 76mm |
| L2 | 14mm |
| L3 | 65mm |
| N | 26mm |
| N1 | 16mm |
| N2 | 36mm |
| S | 16.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 22.36 kN |
| Static load C0 | 11.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.33 kg |
