SKU: EXT212-SNR

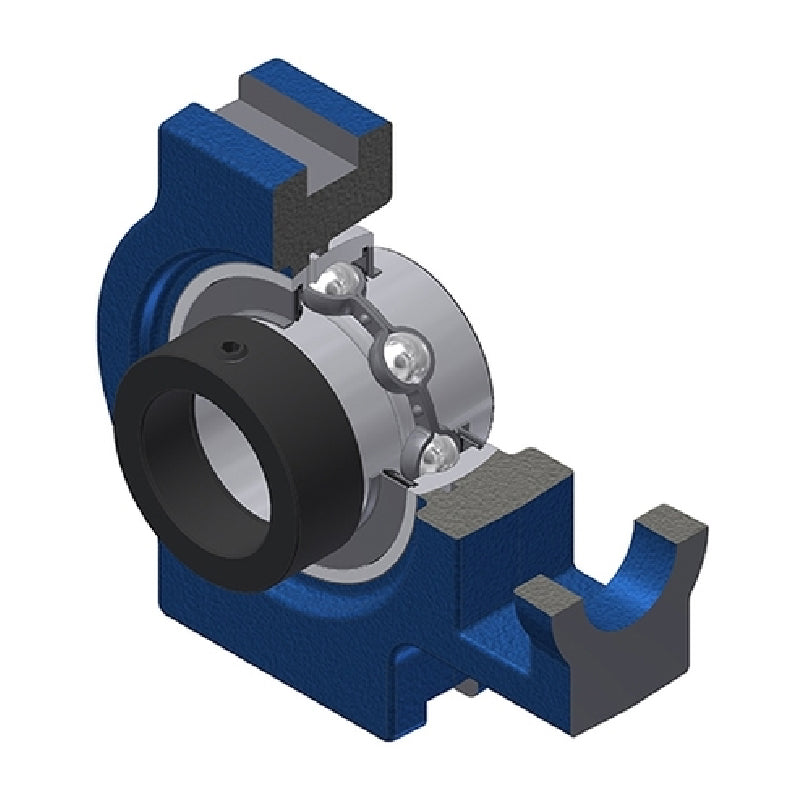

SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price
Rs. 9,776.79
Regular price
Sale price
Rs. 9,776.79
Taxes included.
In stock
Price Break
10+
Rs. 8,701.34
19+
Rs. 8,212.50
29+
Rs. 8,114.74
39+
Rs. 8,016.97
49+
Rs. 7,919.20
74+
Rs. 7,821.43
99+
Rs. 7,332.59
199+
Rs. 7,234.82
249+
Rs. 7,137.06
499+
Rs. 7,039.29
999+
Rs. 6,843.75
Description
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 42mm |
| B1 | 77.7mm |
| d1 | 82mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 194mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 102mm |
| N | 35mm |
| N1 | 32mm |
| N2 | 64mm |
| S | 30.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.07 kg |
