SKU: EXSP205N-SNR

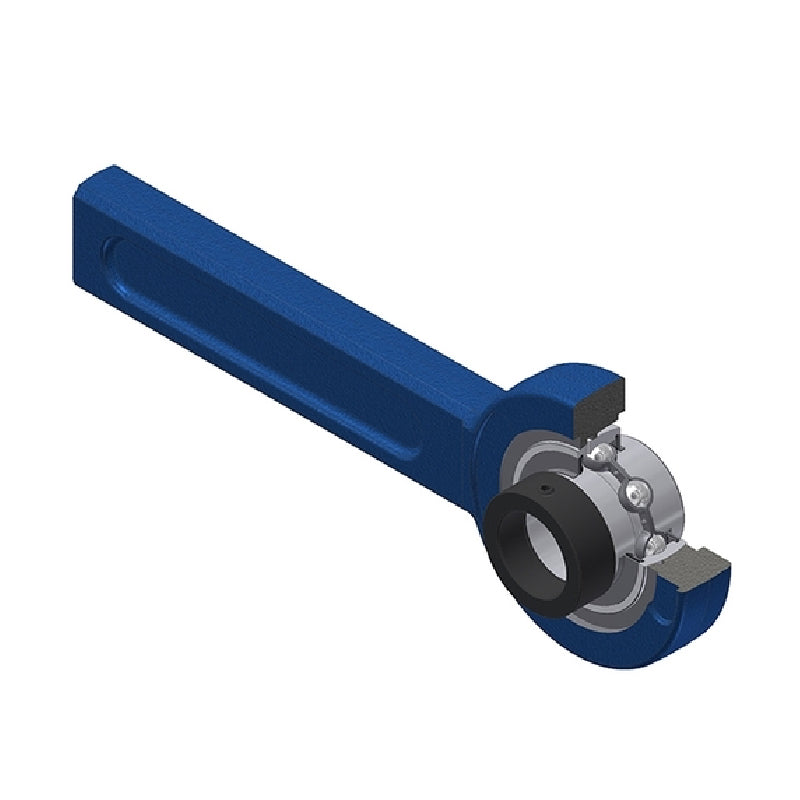

SNR EXSP205N Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXSP205N Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 12,768.49
ex VAT
Regular price
Sale price
Rs. 12,768.49
ex VAT
In stock
Price Break
5+
Rs. 12,640.81
10+
Rs. 12,130.07
20+
Rs. 11,874.70
50+
Rs. 11,491.64
100+
Rs. 11,236.27
500+
Rs. 10,597.85
1000+
Rs. 8,937.94
Couldn't load pickup availability
Description
Description
EXSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 21mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| H | 78mm |
| H2 | 41mm |
| L | 264mm |
| L1 | 225mm |
| S | 17.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Mass | 1.55 kg |
