SKU: EXPE207-SNR
SNR EXPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,429.45
Regular price
Sale price
Rs. 4,429.45
Taxes included.
In stock
Price Break
10+
Rs. 3,942.21
19+
Rs. 3,720.74
29+
Rs. 3,676.44
39+
Rs. 3,632.15
49+
Rs. 3,587.85
74+
Rs. 3,543.56
99+
Rs. 3,322.09
199+
Rs. 3,277.79
249+
Rs. 3,233.50
499+
Rs. 3,189.20
999+
Rs. 3,100.62
Description
Description

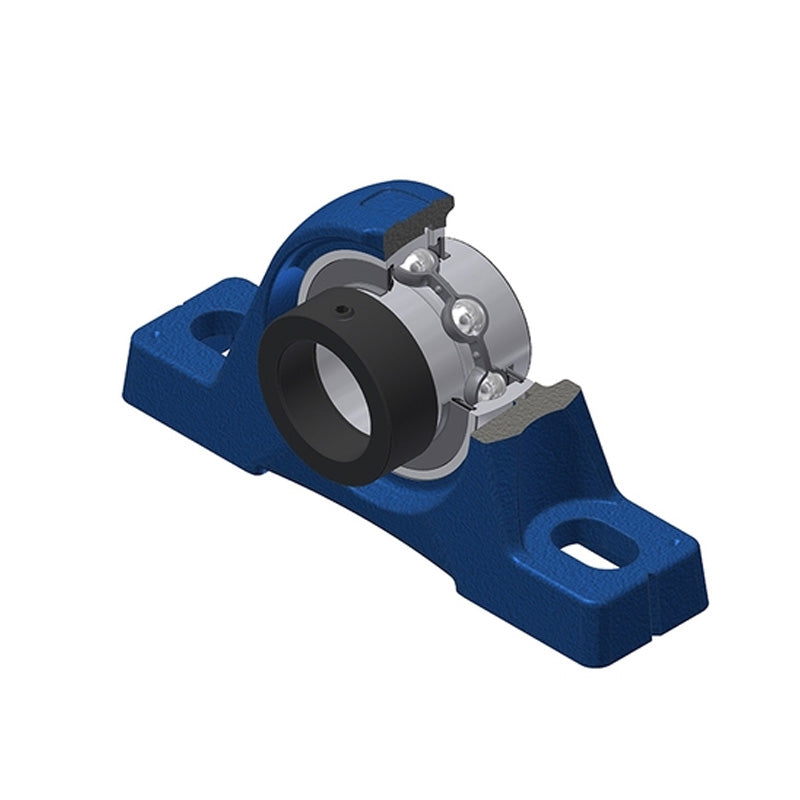

EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXPE
- Bolt Hole Centres:
- 126mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 45mm |
| A1 | 27mm |
| B | 37.6mm |
| d1 | 51.1mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 93mm |
| J | 126mm |
| L | 163mm |
| L1 | 49mm |
| N | 14mm |
| N1 | 21mm |
| S | 18.8mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.7 kg |
