SKU: EXPAE212N-SNR

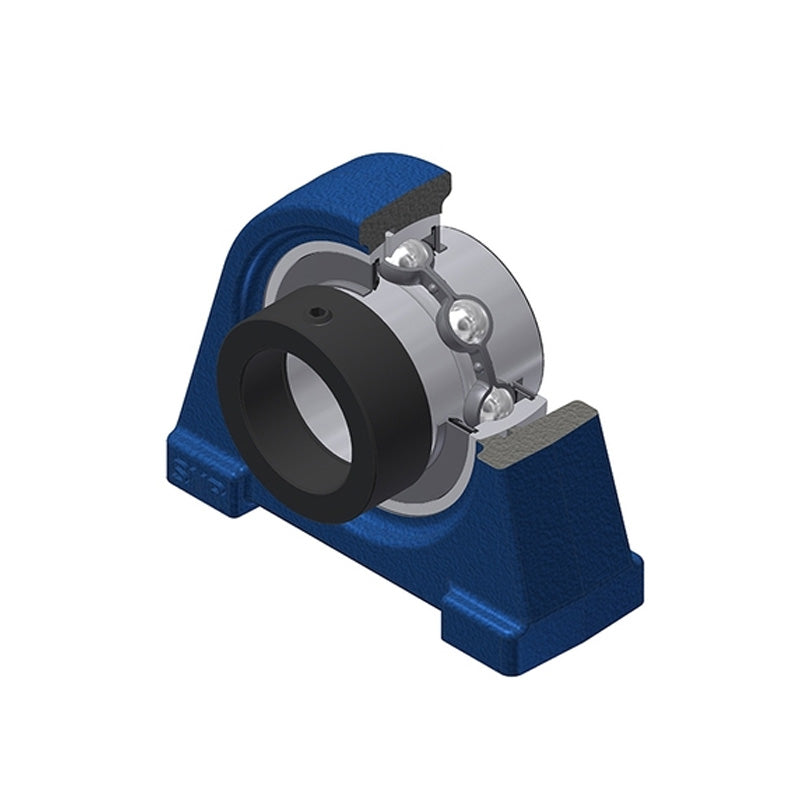

SNR EXPAE212N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
SNR EXPAE212N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price
Rs. 17,029.06
Regular price
Sale price
Rs. 17,029.06
Taxes included.
In stock
Price Break
5+
Rs. 16,858.77
10+
Rs. 16,177.61
20+
Rs. 15,837.03
50+
Rs. 15,326.15
100+
Rs. 14,985.57
500+
Rs. 14,134.12
1000+
Rs. 11,920.34
Description
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical

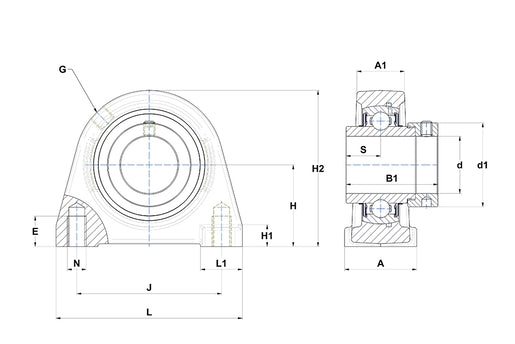

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 61.8mm |
| d1 | 82mm |
| E | 20mm |
| H | 69.9mm |
| H1 | 16mm |
| H2 | 140mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| S | 30.9mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.47 kg |
