SKU: EXPAE205-SNR

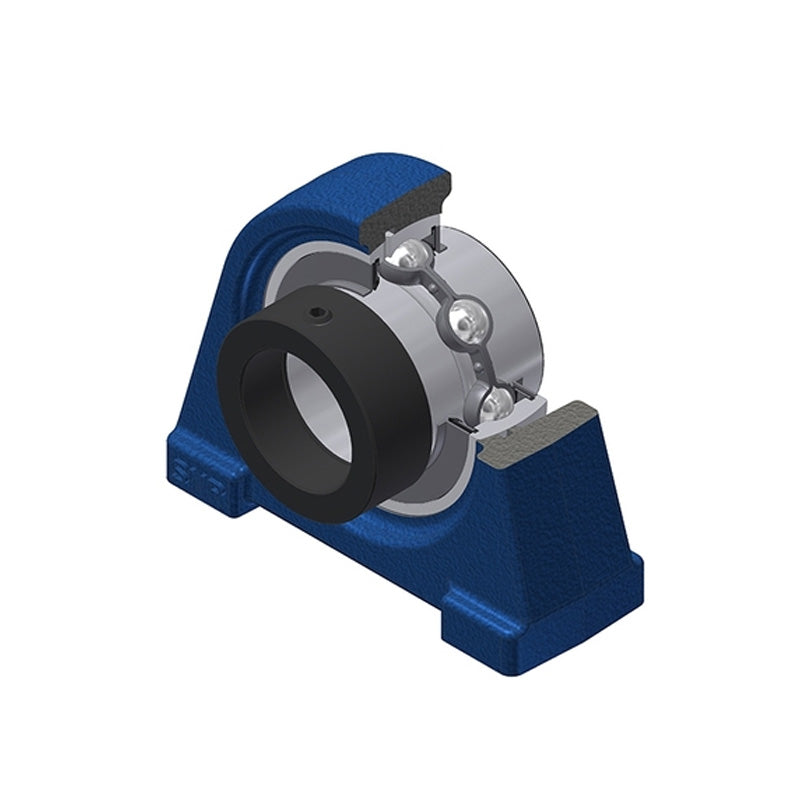

SNR EXPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore
SNR EXPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore
Regular price
Rs. 3,565.32
Regular price
Sale price
Rs. 3,565.32
Taxes included.
In stock
Price Break
10+
Rs. 3,173.13
19+
Rs. 2,994.87
29+
Rs. 2,959.22
39+
Rs. 2,923.56
49+
Rs. 2,887.91
74+
Rs. 2,852.26
99+
Rs. 2,673.99
199+
Rs. 2,638.34
249+
Rs. 2,602.68
499+
Rs. 2,567.03
999+
Rs. 2,495.72
Description
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXPAE
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 36mm |
| A1 | 21mm |
| B | 34.8mm |
| d1 | 37.4mm |
| E | 12.5mm |
| H | 36.5mm |
| H1 | 10mm |
| H2 | 70mm |
| J | 50.8mm |
| L | 70mm |
| L1 | 21mm |
| N | M10 |
| S | 17.4mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.65 kg |
