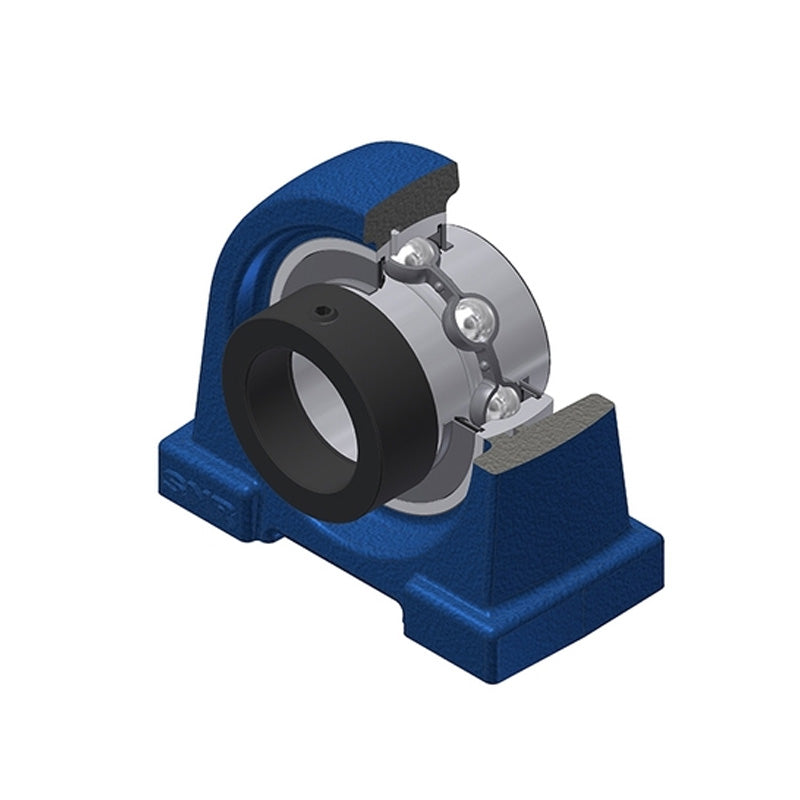

SNR EXPA201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
SNR EXPA201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
Regular price
Rs. 3,967.30
Regular price
Sale price
Rs. 3,967.30
Taxes included.
In stock
Price Break
5+
Rs. 3,927.63
10+
Rs. 3,768.94
20+
Rs. 3,689.59
50+
Rs. 3,570.57
100+
Rs. 3,491.22
500+
Rs. 3,292.86
1000+
Rs. 2,777.11
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- EXPA
- Bolt Hole Centres:
- 52mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 40mm |
| A1 | 22mm |
| B | 34mm |
| d1 | 32.4mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 11mm |
| H2 | 62mm |
| J | 52mm |
| L | 76mm |
| L1 | 22mm |
| N | M10 |
| S | 17mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.69 kg |
