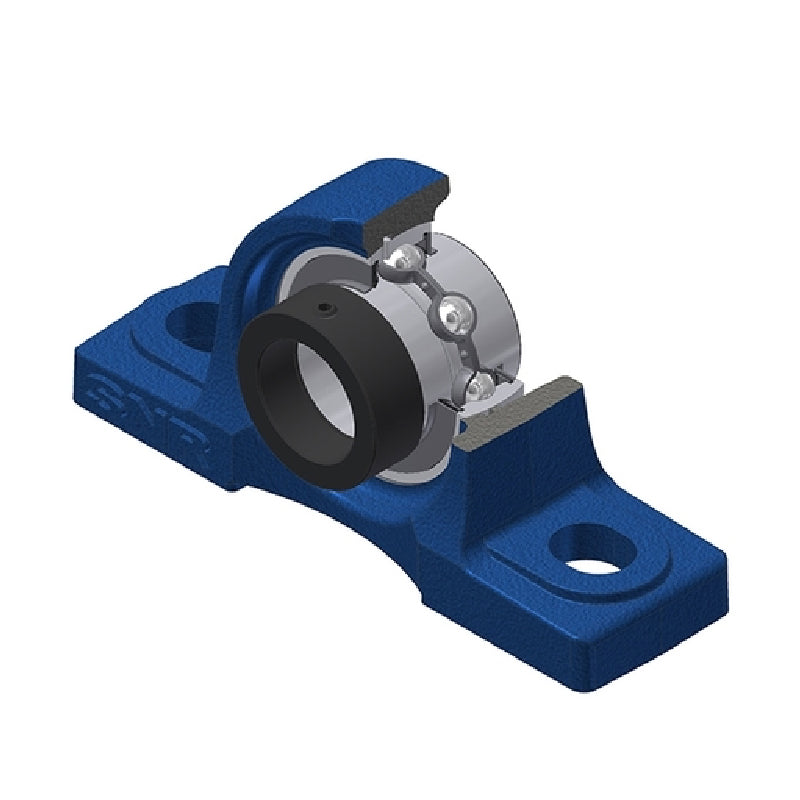

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 13,984.77
Regular price
Sale price
Rs. 13,984.77
Taxes included.
In stock
Price Break
10+
Rs. 12,446.45
19+
Rs. 11,747.21
29+
Rs. 11,607.36
39+
Rs. 11,467.51
49+
Rs. 11,327.66
74+
Rs. 11,187.82
99+
Rs. 10,488.58
199+
Rs. 10,348.73
249+
Rs. 10,208.88
499+
Rs. 10,069.03
999+
Rs. 9,789.34
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 80mm |
| A1 | 51mm |
| B | 55.6mm |
| d1 | 83mm |
| H | 80mm |
| H1 | 30mm |
| H2 | 154mm |
| J | 236mm |
| L | 310mm |
| L1 | 85mm |
| N | 20mm |
| N1 | 38mm |
| S | 27.8mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 7.9 kg |
