SKU: EXP310-SNR

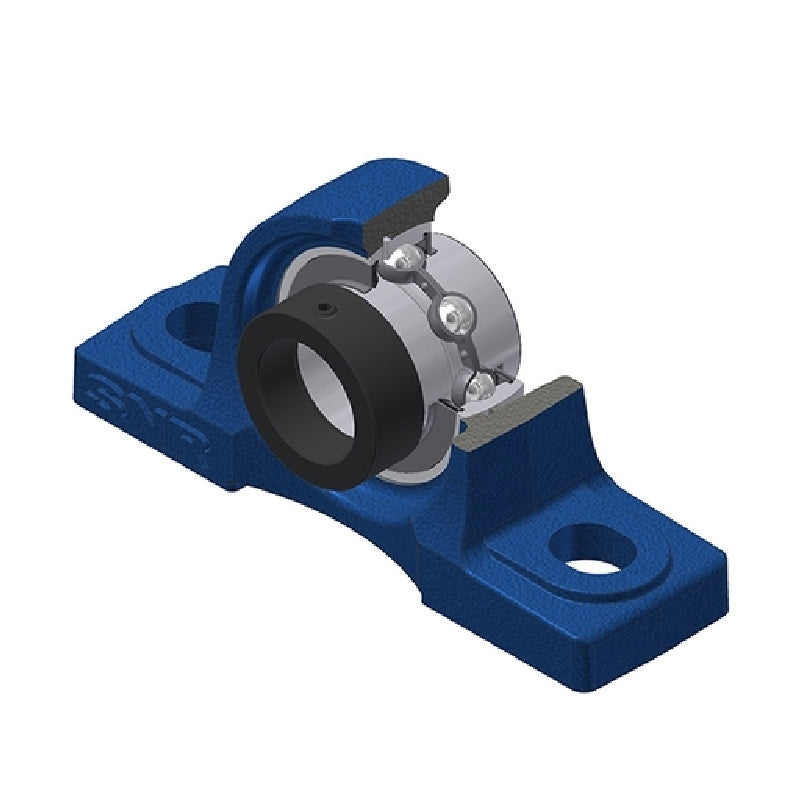

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 11,105.63
Regular price
Sale price
Rs. 11,105.63
Taxes included.
In stock
Price Break
10+
Rs. 9,884.01
19+
Rs. 9,328.73
29+
Rs. 9,217.67
39+
Rs. 9,106.62
49+
Rs. 8,995.56
74+
Rs. 8,884.50
99+
Rs. 8,329.22
199+
Rs. 8,218.17
249+
Rs. 8,107.11
499+
Rs. 7,996.05
999+
Rs. 7,773.94
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 75mm |
| A1 | 48mm |
| B | 49.2mm |
| d1 | 76.2mm |
| H | 75mm |
| H1 | 27mm |
| H2 | 143mm |
| J | 212mm |
| L | 275mm |
| L1 | 75mm |
| N | 20mm |
| N1 | 35mm |
| S | 24.6mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.36 kg |
