SKU: EXP309-SNR

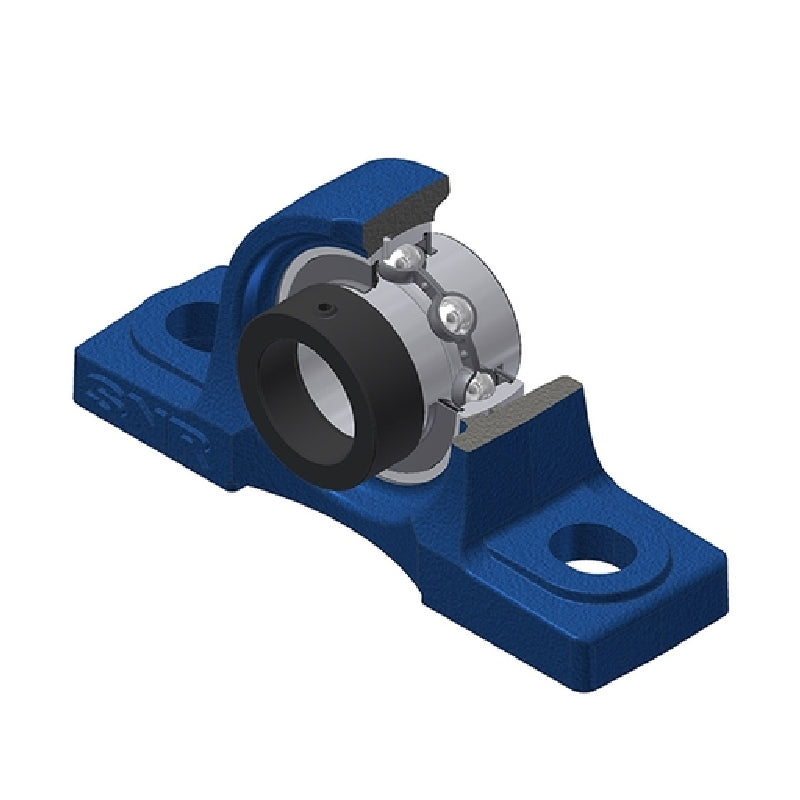

SNR EXP309 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP309 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 12,769.77
ex VAT
Regular price
Sale price
Rs. 12,769.77
ex VAT
In stock
Price Break
5+
Rs. 12,642.07
10+
Rs. 12,131.28
20+
Rs. 11,875.89
50+
Rs. 11,492.79
100+
Rs. 11,237.40
500+
Rs. 10,598.91
1000+
Rs. 8,938.84
Couldn't load pickup availability
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXP
- Bolt Hole Centres:
- 190mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 67mm |
| A1 | 45mm |
| B | 42.9mm |
| d1 | 70mm |
| H | 67mm |
| H1 | 24mm |
| H2 | 129mm |
| J | 190mm |
| L | 245mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 30mm |
| S | 19.8mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.75 kg |
