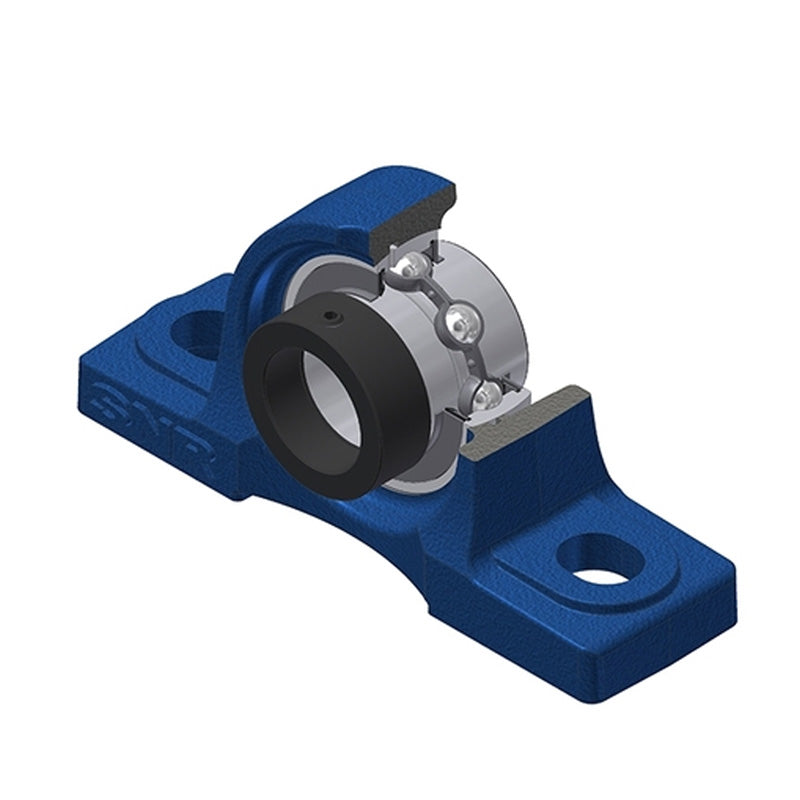

SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
Regular price
Rs. 19,743.05
Regular price
Sale price
Rs. 19,743.05
Taxes included.
In stock
Price Break
10+
Rs. 17,571.31
19+
Rs. 16,584.16
29+
Rs. 16,386.73
39+
Rs. 16,189.30
49+
Rs. 15,991.87
74+
Rs. 15,794.44
99+
Rs. 14,807.29
199+
Rs. 14,609.86
249+
Rs. 14,412.43
499+
Rs. 14,215.00
999+
Rs. 13,820.14
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 78mm |
| A1 | 51mm |
| B | 74.6mm |
| d1 | 110mm |
| H | 88.9mm |
| H1 | 30mm |
| H2 | 175mm |
| J | 232mm |
| L | 292mm |
| L1 | 91mm |
| N | 25mm |
| N1 | 31mm |
| S | 37.3mm |
| Dz | mm |
| Z | mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 9.32 kg |
