SKU: EXP214-43-SNR

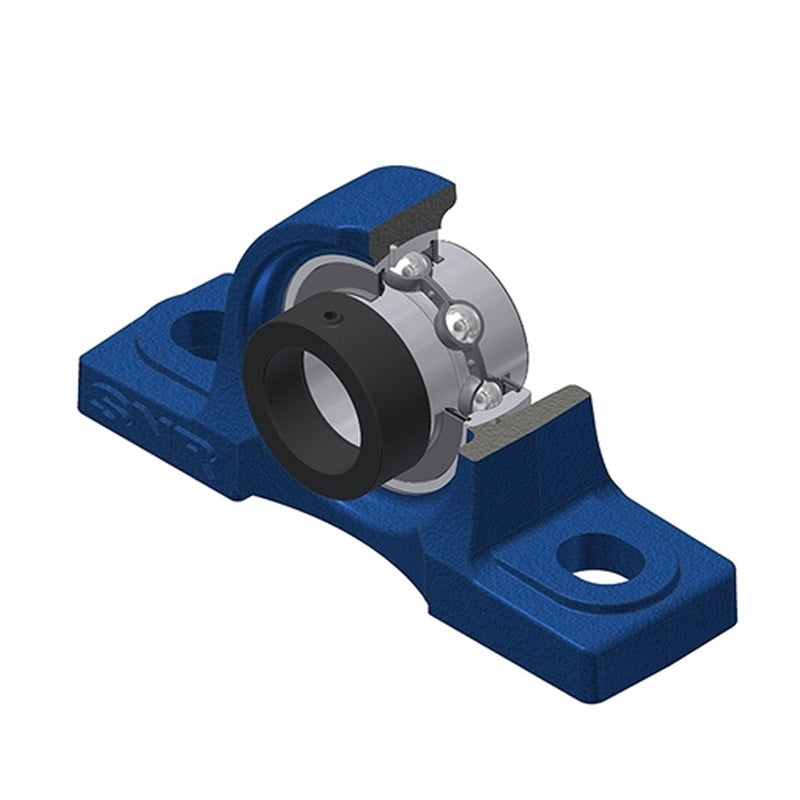

SNR EXP214-43 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-11/16 inch Eccentric Collar Insert - Allow 2-3 Days
SNR EXP214-43 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-11/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 22,686.21
Regular price
Sale price
Rs. 22,686.21
Taxes included.
In stock
Price Break
5+
Rs. 22,459.35
10+
Rs. 21,551.90
20+
Rs. 21,098.18
50+
Rs. 20,417.59
100+
Rs. 19,963.86
500+
Rs. 18,829.55
1000+
Rs. 15,880.35
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- EXP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-11/16 inch |
| A | 72mm |
| A1 | 48mm |
| B | 68.2mm |
| d1 | 96.8mm |
| H | 79.4mm |
| H1 | 27mm |
| H2 | 156mm |
| J | 210mm |
| L | 266mm |
| L1 | 83mm |
| N | 25mm |
| N1 | 31mm |
| S | 34.1mm |
| Dz | mm |
| Z | mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 7.22 kg |
