SKU: EXP207-23-SNR

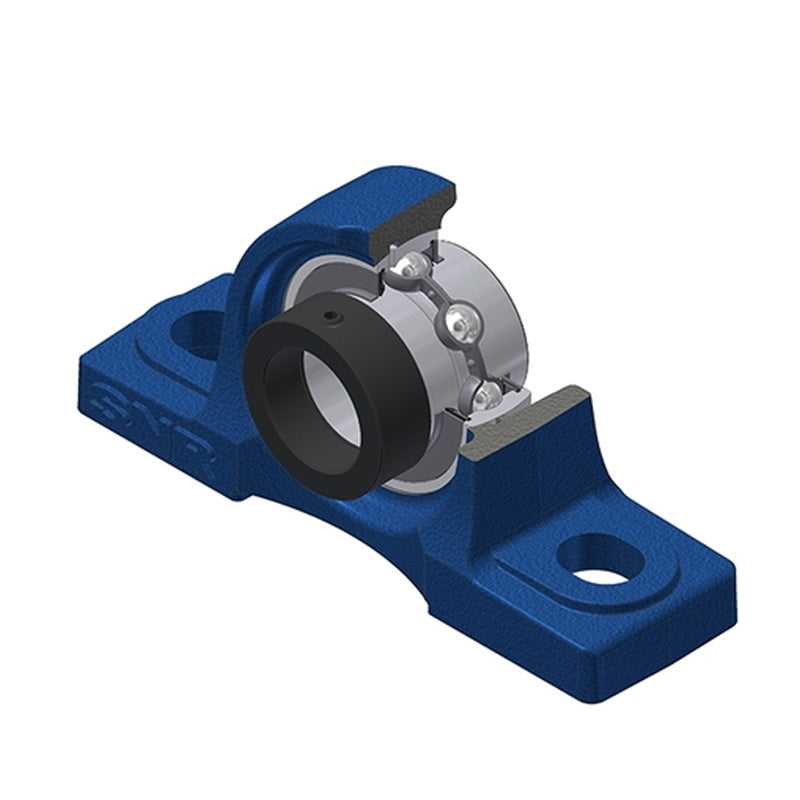

SNR EXP207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
SNR EXP207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,083.28
Regular price
Sale price
Rs. 7,083.28
Taxes included.
In stock
Price Break
5+
Rs. 7,012.45
10+
Rs. 6,729.12
20+
Rs. 6,587.45
50+
Rs. 6,374.95
100+
Rs. 6,233.29
500+
Rs. 5,879.12
1000+
Rs. 4,958.30
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- EXP
- Bolt Hole Centres:
- 127mm
Technical
Technical

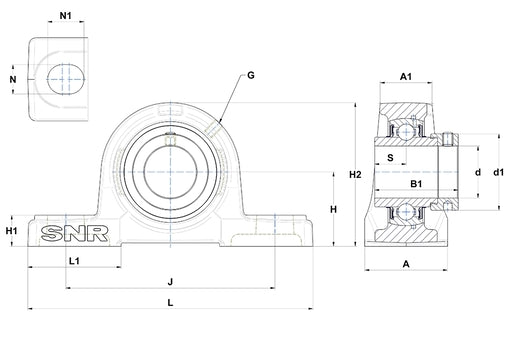

| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/16 inch |
| A | 48mm |
| A1 | 31mm |
| B | 37.6mm |
| d1 | 51.1mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 94mm |
| J | 127mm |
| L | 167mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 18.8mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.78 kg |
