SKU: EXP202-SNR

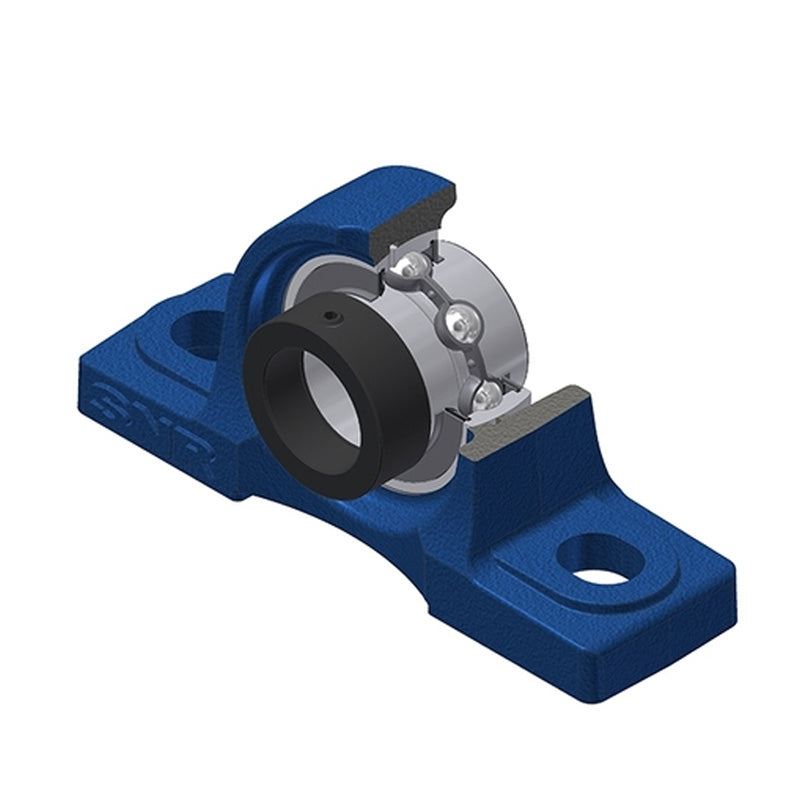

SNR EXP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 3,382.43
ex VAT
Regular price
Sale price
Rs. 3,382.43
ex VAT
In stock
Price Break
5+
Rs. 3,348.61
10+
Rs. 3,213.31
20+
Rs. 3,145.66
50+
Rs. 3,044.19
100+
Rs. 2,976.54
500+
Rs. 2,807.42
1000+
Rs. 2,367.70
Couldn't load pickup availability
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- EXP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 38mm |
| A1 | 22mm |
| B | 34mm |
| d1 | 32.4mm |
| H | 33.3mm |
| H1 | 15mm |
| H2 | 65mm |
| J | 95mm |
| L | 127mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 17mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.77 kg |
