SKU: EXFS306-SNR

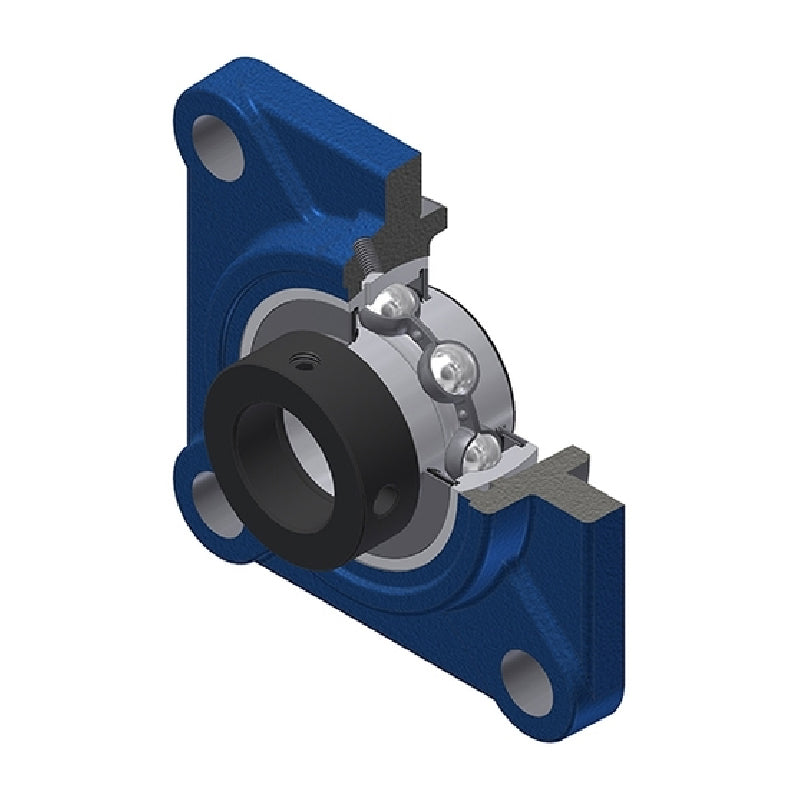

SNR EXFS306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFS306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 8,506.85
Regular price
Sale price
Rs. 8,506.85
Taxes included.
In stock
Price Break
5+
Rs. 8,421.78
10+
Rs. 8,081.51
20+
Rs. 7,911.37
50+
Rs. 7,656.17
100+
Rs. 7,486.03
500+
Rs. 7,060.69
1000+
Rs. 5,954.80
Description
Description
EXFS300 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXFS
- Bolt Hole Centres:
- 95mm
Technical
Technical

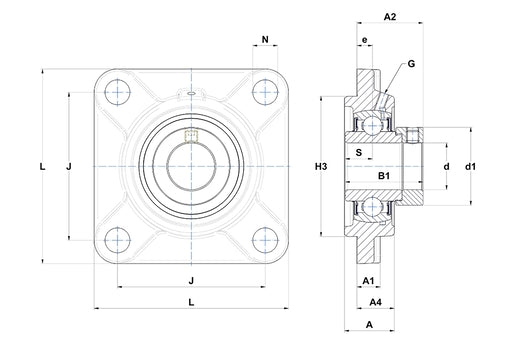

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32mm |
| A1 | 15mm |
| A2 | 42.5mm |
| A4 | 24mm |
| B | 36.5mm |
| B1 | 50mm |
| d1 | 50mm |
| e | 10mm |
| H3 | 90mm |
| J | 95mm |
| L | 125mm |
| N | 16mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load ratings |
| Dynamic load C | 27 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.98 kg |
