SKU: EXFLZ206-SNR

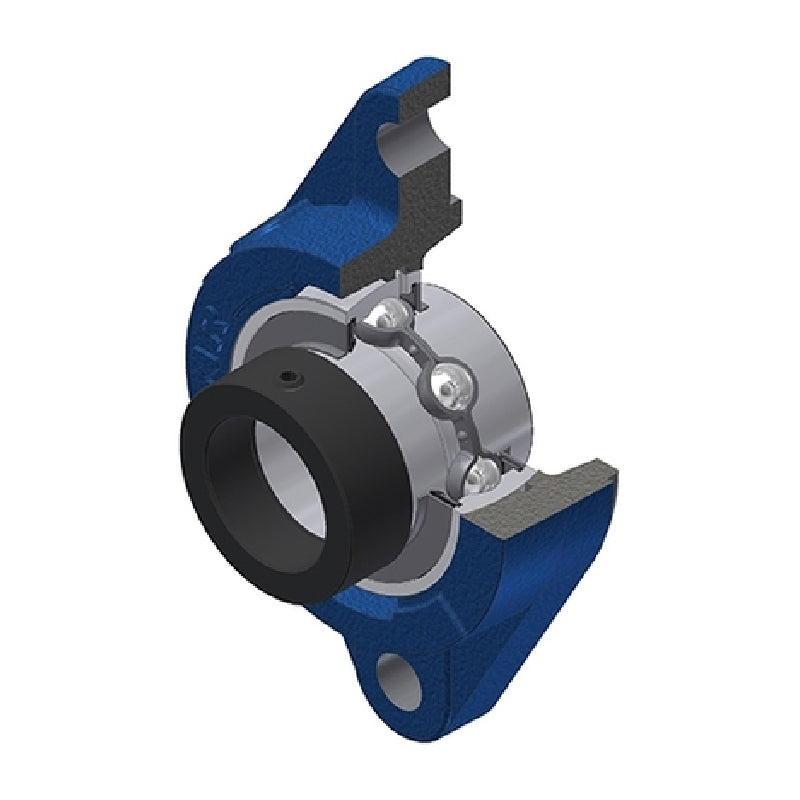

SNR EXFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,671.23
Regular price
Sale price
Rs. 5,671.23
Taxes included.
In stock
Price Break
5+
Rs. 5,614.52
10+
Rs. 5,387.67
20+
Rs. 5,274.24
50+
Rs. 5,104.11
100+
Rs. 4,990.68
500+
Rs. 4,707.12
1000+
Rs. 3,969.86
Description
Description
EXFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXFLZ
- Bolt Hole Centres:
- 116.5mm
Technical
Technical

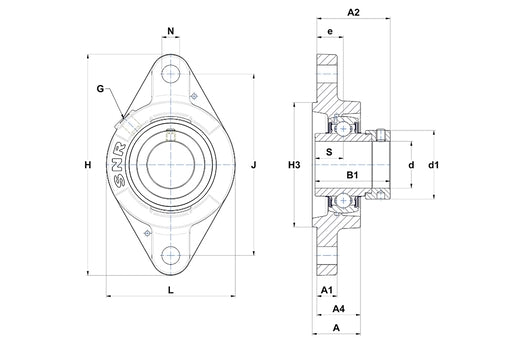

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 30mm |
| A1 | 12mm |
| A2 | 47.1mm |
| A4 | 27mm |
| B | 36.4mm |
| B1 | 48.3mm |
| d1 | 44.1mm |
| e | 17mm |
| H | 142mm |
| H3 | 80mm |
| J | 116.5mm |
| L | 83mm |
| N | 11.5mm |
| S | 18.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.01 kg |
