SKU: EXFLE211-SNR
SNR EXFLE211 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLE211 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,917.96
Regular price
Sale price
Rs. 7,917.96
Taxes included.
In stock
Price Break
10+
Rs. 7,046.98
19+
Rs. 6,651.09
29+
Rs. 6,571.91
39+
Rs. 6,492.73
49+
Rs. 6,413.55
74+
Rs. 6,334.37
99+
Rs. 5,938.47
199+
Rs. 5,859.29
249+
Rs. 5,780.11
499+
Rs. 5,700.93
999+
Rs. 5,542.57
Description
Description

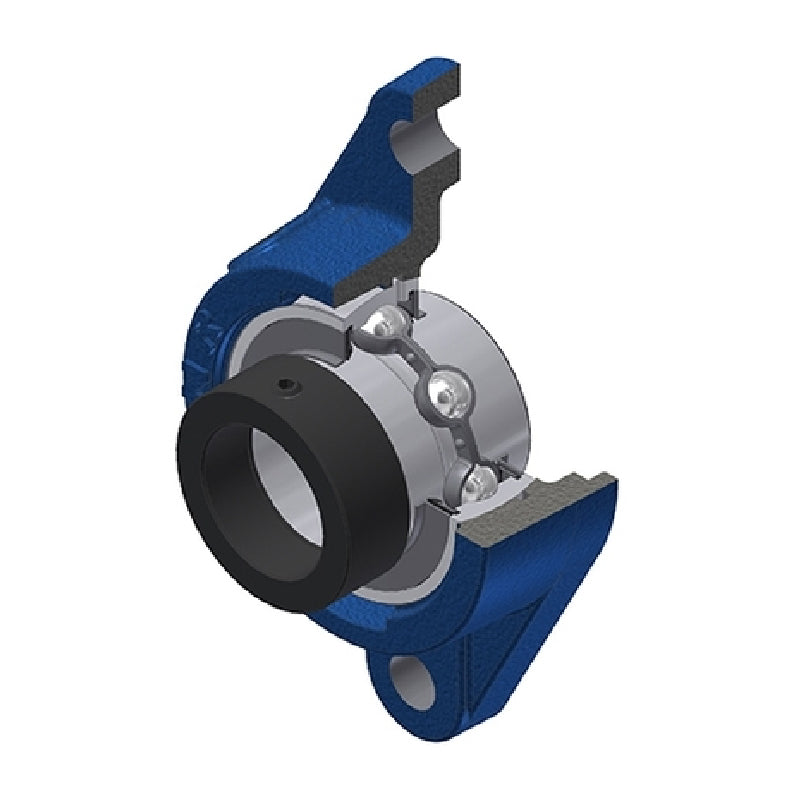

EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 45.8mm |
| A1 | 15mm |
| A2 | 74.6mm |
| B | 55.4mm |
| B1 | 71.3mm |
| d1 | 74.5mm |
| e | 31mm |
| H | 222mm |
| J | 184mm |
| L | 134mm |
| N | 18mm |
| S | 27.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.49 kg |
