SKU: EXFL313-SNR

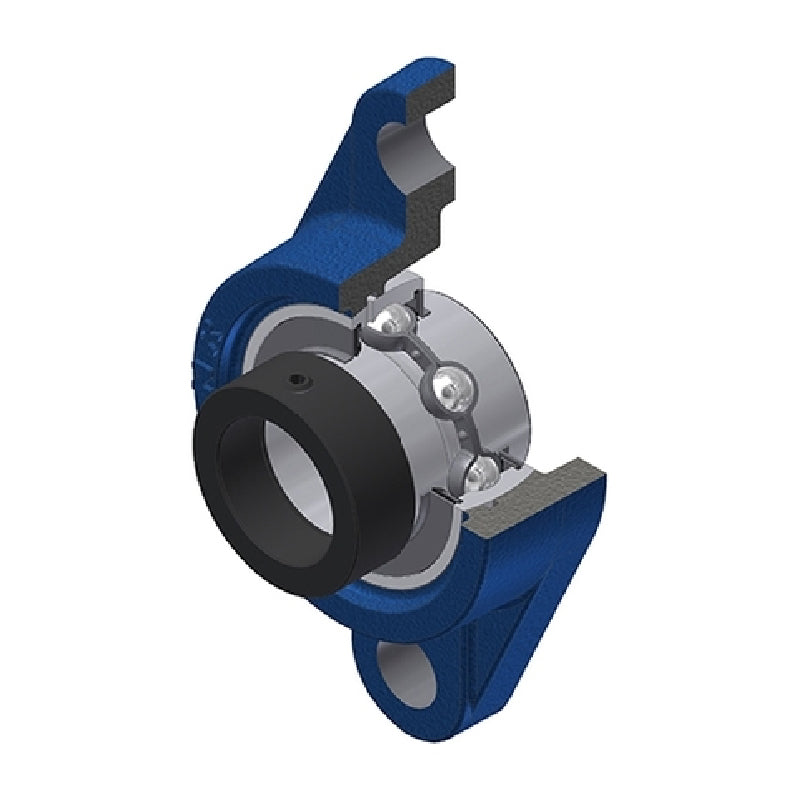

SNR EXFL313 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL313 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 28,383.04
Regular price
Sale price
Rs. 28,383.04
Taxes included.
In stock
Price Break
5+
Rs. 28,099.21
10+
Rs. 26,963.89
20+
Rs. 26,396.23
50+
Rs. 25,544.74
100+
Rs. 24,977.08
500+
Rs. 23,557.92
1000+
Rs. 19,868.13
Description
Description
EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXFL
- Bolt Hole Centres:
- 240mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 58mm |
| A1 | 25mm |
| A2 | 86.2mm |
| B | 65.1mm |
| B1 | 85.7mm |
| d1 | 97mm |
| e | 33mm |
| H | 295mm |
| J | 240mm |
| L | 175mm |
| N | 31mm |
| S | 32.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 93.86 kN |
| Static load C0 | 60.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.69 kg |
