SKU: EXFL311-SNR
SNR EXFL311 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL311 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 19,868.51
Regular price
Sale price
Rs. 19,868.51
Taxes included.
In stock
Price Break
5+
Rs. 19,669.82
10+
Rs. 18,875.08
20+
Rs. 18,477.71
50+
Rs. 17,881.66
100+
Rs. 17,484.29
500+
Rs. 16,490.86
1000+
Rs. 13,907.96
Description
Description

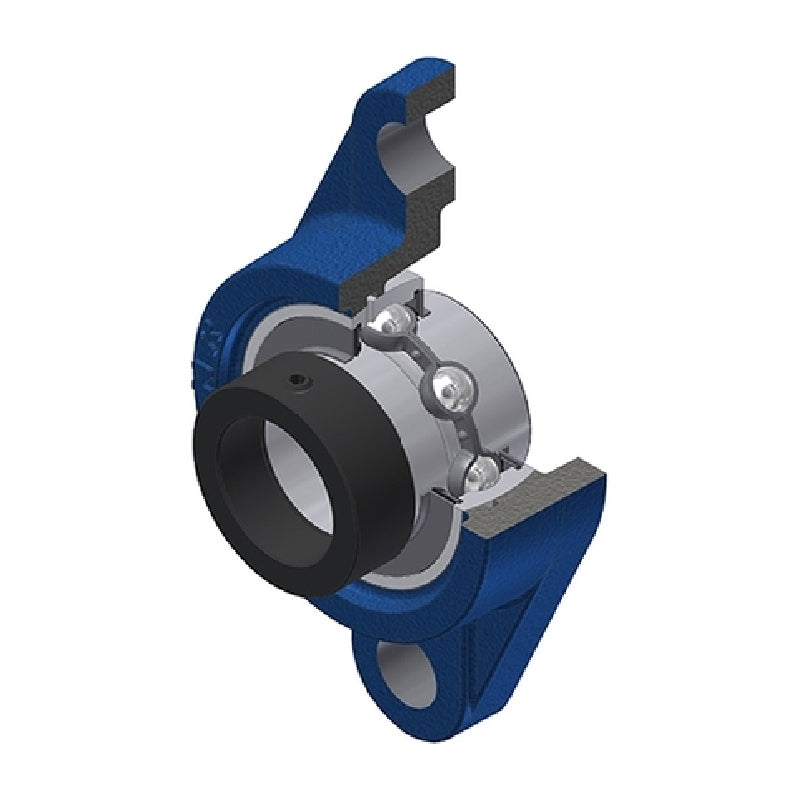

EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFL
- Bolt Hole Centres:
- 198mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 52mm |
| A1 | 20mm |
| A2 | 75.2mm |
| B | 55.6mm |
| B1 | 73mm |
| d1 | 83mm |
| e | 30mm |
| H | 250mm |
| J | 198mm |
| L | 150mm |
| N | 25mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.96 kg |
