SKU: EXFL206-SNR

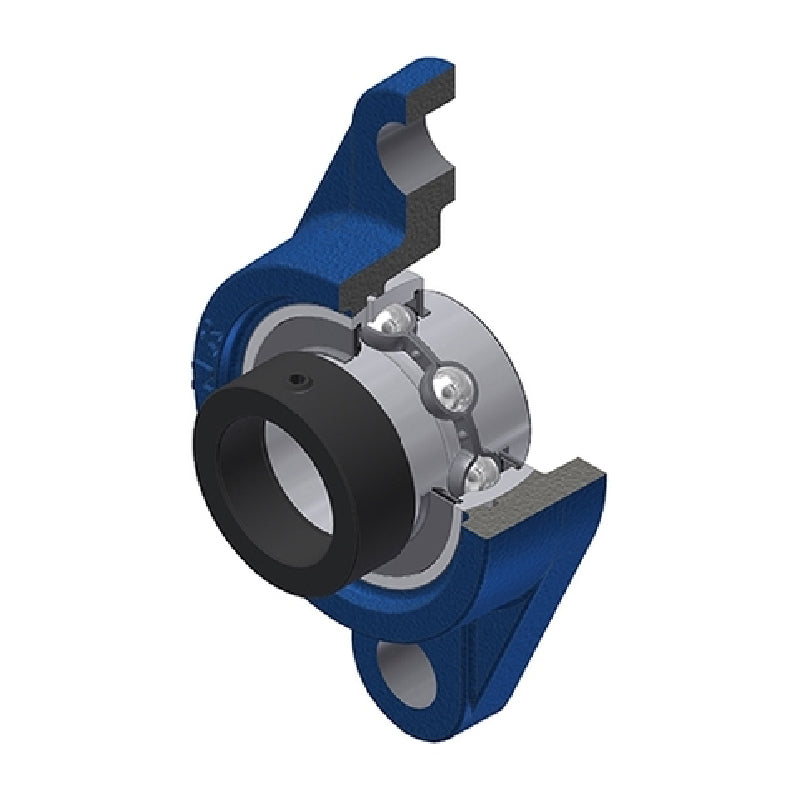

SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,429.45
Regular price
Sale price
Rs. 4,429.45
Taxes included.
In stock
Price Break
10+
Rs. 3,942.21
19+
Rs. 3,720.74
29+
Rs. 3,676.44
39+
Rs. 3,632.15
49+
Rs. 3,587.85
74+
Rs. 3,543.56
99+
Rs. 3,322.09
199+
Rs. 3,277.79
249+
Rs. 3,233.50
499+
Rs. 3,189.20
999+
Rs. 3,100.62
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 13mm |
| A2 | 48.1mm |
| B | 36.4mm |
| B1 | 48.3mm |
| d1 | 44.1mm |
| e | 18mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 16mm |
| S | 18.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.98 kg |
