SKU: EXFL205N-SNR

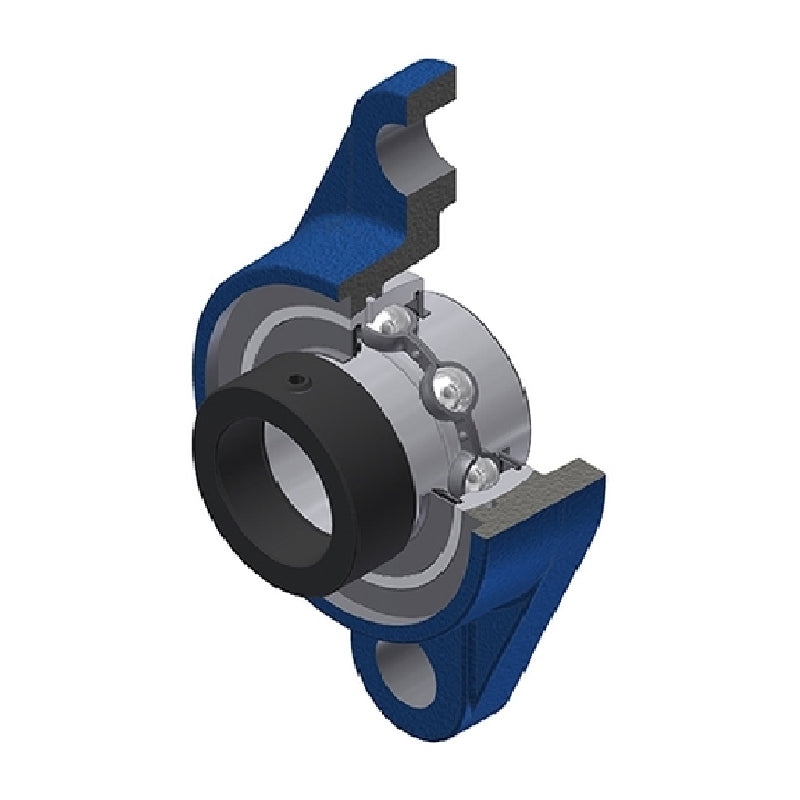

SNR EXFL205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,168.29
Regular price
Sale price
Rs. 4,168.29
Taxes included.
In stock
Price Break
10+
Rs. 3,709.78
19+
Rs. 3,501.36
29+
Rs. 3,459.68
39+
Rs. 3,418.00
49+
Rs. 3,376.31
74+
Rs. 3,334.63
99+
Rs. 3,126.22
199+
Rs. 3,084.53
249+
Rs. 3,042.85
499+
Rs. 3,001.17
999+
Rs. 2,917.80
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 13mm |
| A2 | 42.9mm |
| B | 34.8mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| e | 16mm |
| H | 130mm |
| J | 99mm |
| L | 68mm |
| N | 16mm |
| S | 17.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.65 kg |
