SKU: EXFE215-SNR

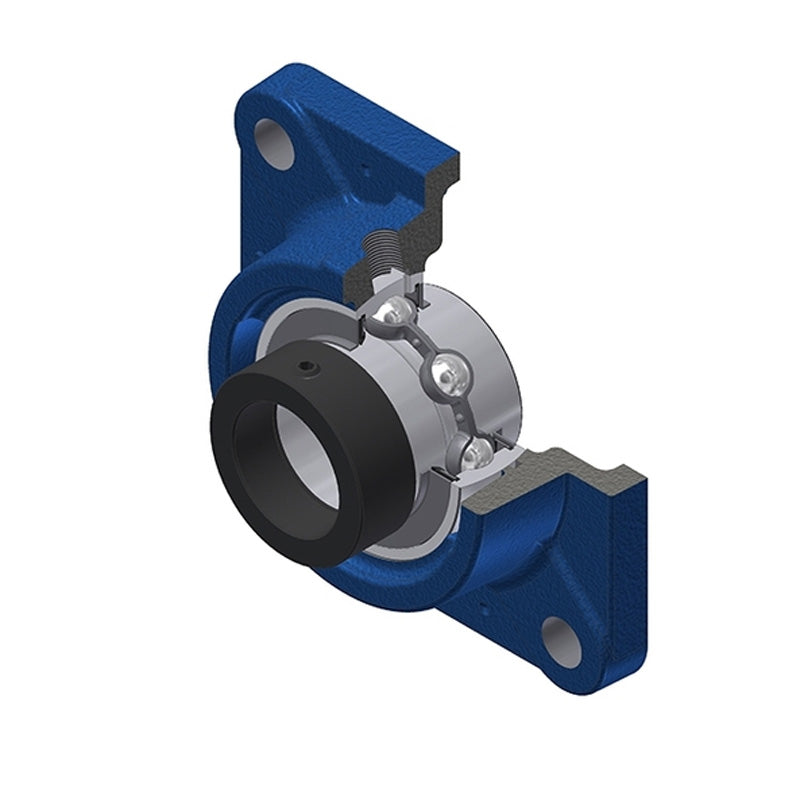

SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 17,687.07
Regular price
Sale price
Rs. 17,687.07
Taxes included.
In stock
Price Break
10+
Rs. 15,741.49
19+
Rs. 14,857.14
29+
Rs. 14,680.27
39+
Rs. 14,503.40
49+
Rs. 14,326.53
74+
Rs. 14,149.66
99+
Rs. 13,265.30
199+
Rs. 13,088.43
249+
Rs. 12,911.56
499+
Rs. 12,734.69
999+
Rs. 12,380.95
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| A | 59mm |
| A1 | 20mm |
| A2 | 96.1mm |
| B | 74.6mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| S | 37.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.89 kg |
