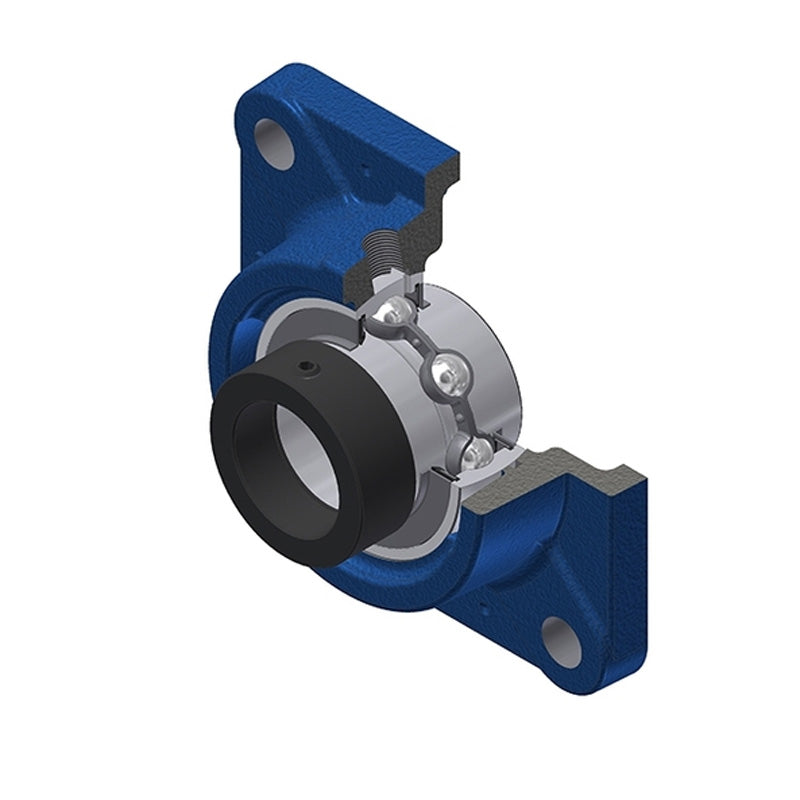

SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 14,396.99
Regular price
Sale price
Rs. 14,396.99
Taxes included.
In stock
Price Break
10+
Rs. 12,813.32
19+
Rs. 12,093.47
29+
Rs. 11,949.50
39+
Rs. 11,805.53
49+
Rs. 11,661.56
74+
Rs. 11,517.59
99+
Rs. 10,797.74
199+
Rs. 10,653.77
249+
Rs. 10,509.80
499+
Rs. 10,365.83
999+
Rs. 10,077.89
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 89.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 96.8mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.65 kg |
