SKU: EXFE212-SNR

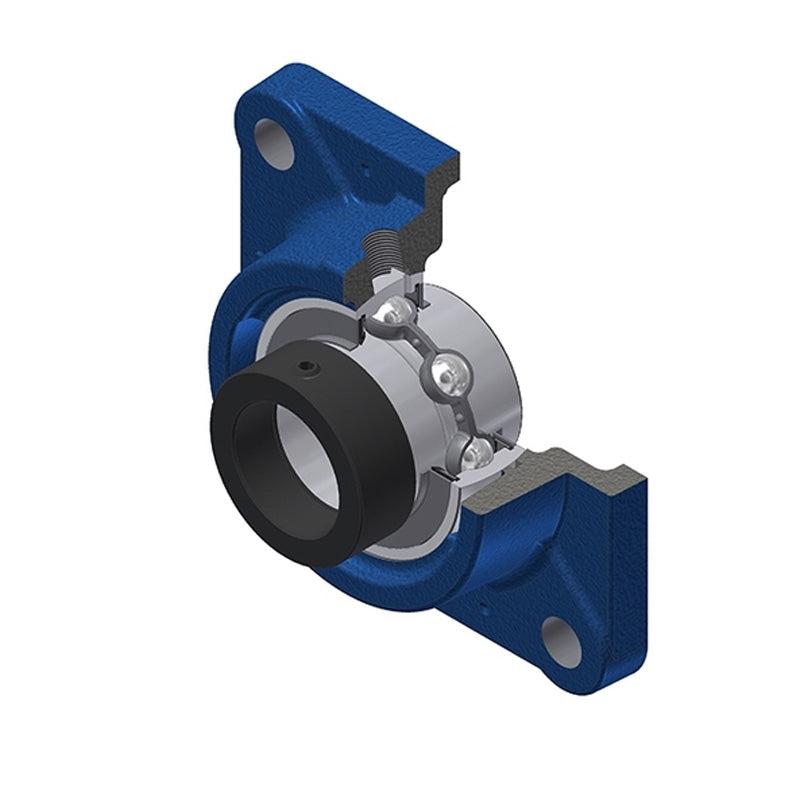

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 9,563.00
Regular price
Sale price
Rs. 9,563.00
Taxes included.
In stock
Price Break
10+
Rs. 8,511.07
19+
Rs. 8,032.92
29+
Rs. 7,937.29
39+
Rs. 7,841.66
49+
Rs. 7,746.03
74+
Rs. 7,650.40
99+
Rs. 7,172.25
199+
Rs. 7,076.62
249+
Rs. 6,980.99
499+
Rs. 6,885.36
999+
Rs. 6,694.10
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXFE
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 53.5mm |
| A1 | 16mm |
| A2 | 80.8mm |
| B | 61.8mm |
| B1 | 77.7mm |
| d1 | 82mm |
| e | 34mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| S | 30.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.2 kg |
