SKU: EXFCE208-SNR

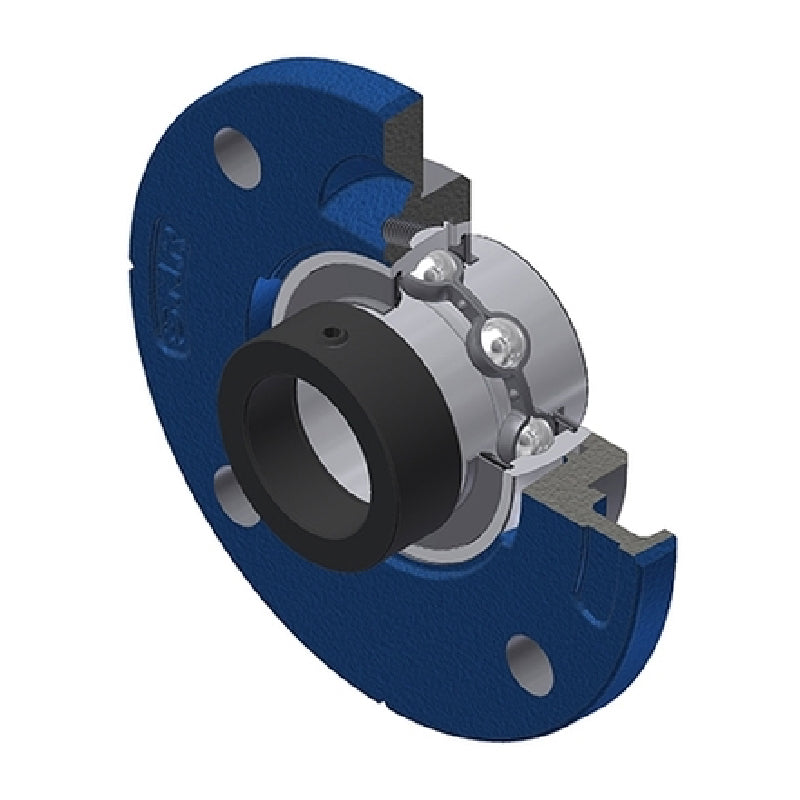

SNR EXFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,090.96
Regular price
Sale price
Rs. 7,090.96
Taxes included.
In stock
Price Break
5+
Rs. 7,020.05
10+
Rs. 6,736.41
20+
Rs. 6,594.59
50+
Rs. 6,381.86
100+
Rs. 6,240.04
500+
Rs. 5,885.50
1000+
Rs. 4,963.67
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 33.9mm |
| A3 | 2mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 58mm |
| e | -1mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 11.5mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.78 kg |
