SKU: EXFA208N-SNR

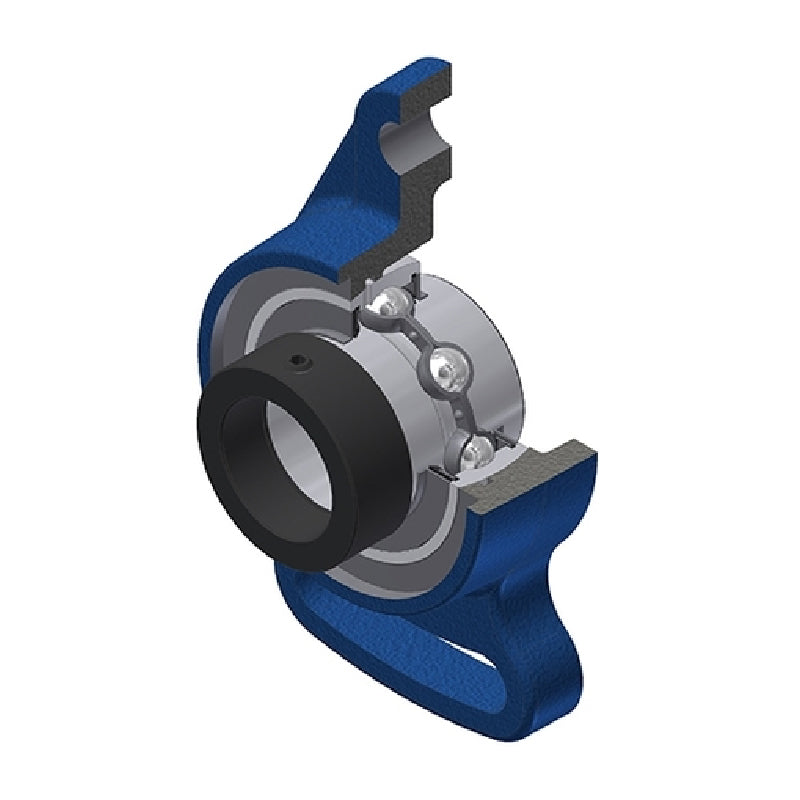

SNR EXFA208N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR EXFA208N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
Rs. 8,506.85
Regular price
Sale price
Rs. 8,506.85
Taxes included.
In stock
Price Break
5+
Rs. 8,421.78
10+
Rs. 8,081.51
20+
Rs. 7,911.37
50+
Rs. 7,656.17
100+
Rs. 7,486.03
500+
Rs. 7,060.69
1000+
Rs. 5,954.80
Description
Description
EXFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXFA
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 55.9mm |
| B | 42.8mm |
| B1 | 56.3mm |
| d1 | 58mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| J1 | 71mm |
| L | 100mm |
| L1 | 87mm |
| N | 15mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.78 kg |
