SKU: EXFA205-SNR

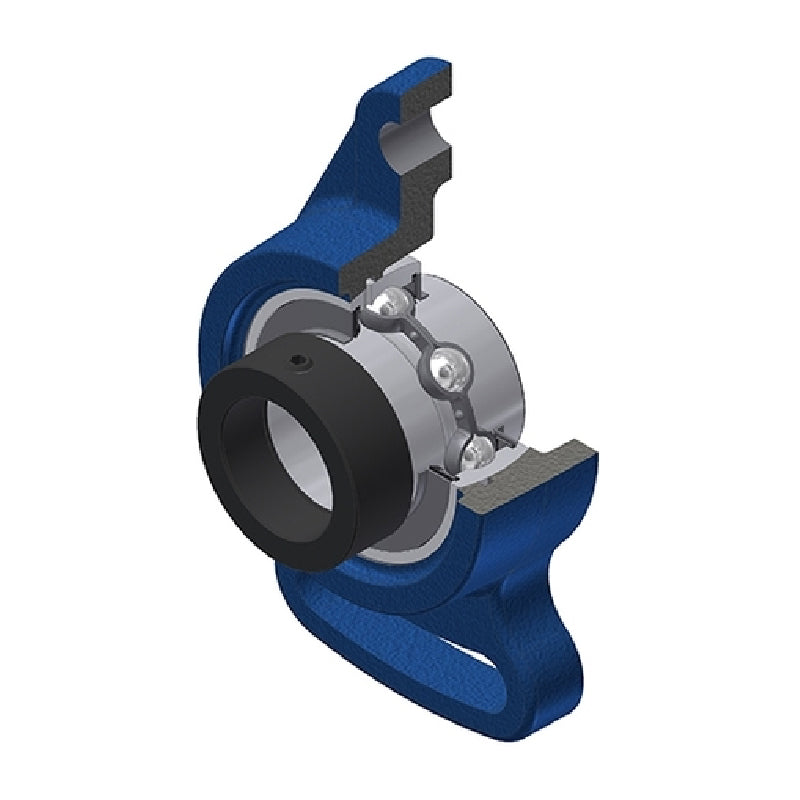

SNR EXFA205 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR EXFA205 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
Rs. 4,536.99
Regular price
Sale price
Rs. 4,536.99
Taxes included.
In stock
Price Break
5+
Rs. 4,491.62
10+
Rs. 4,310.14
20+
Rs. 4,219.40
50+
Rs. 4,083.29
100+
Rs. 3,992.55
500+
Rs. 3,765.70
1000+
Rs. 3,175.89
Description
Description
EXFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXFA
- Bolt Hole Centres:
- 98mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 14mm |
| A2 | 42.9mm |
| B | 34.8mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| e | 16mm |
| H | 125mm |
| J | 98mm |
| J1 | 51mm |
| L | 68mm |
| L1 | 65mm |
| N | 12mm |
| S | 17.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.65 kg |
